Name: VF32B2-Multi-axis actuator
Brand: W-ROBOT

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

[email protected]

E-mail

+86 13049770422

Telephone

+86 13360462722

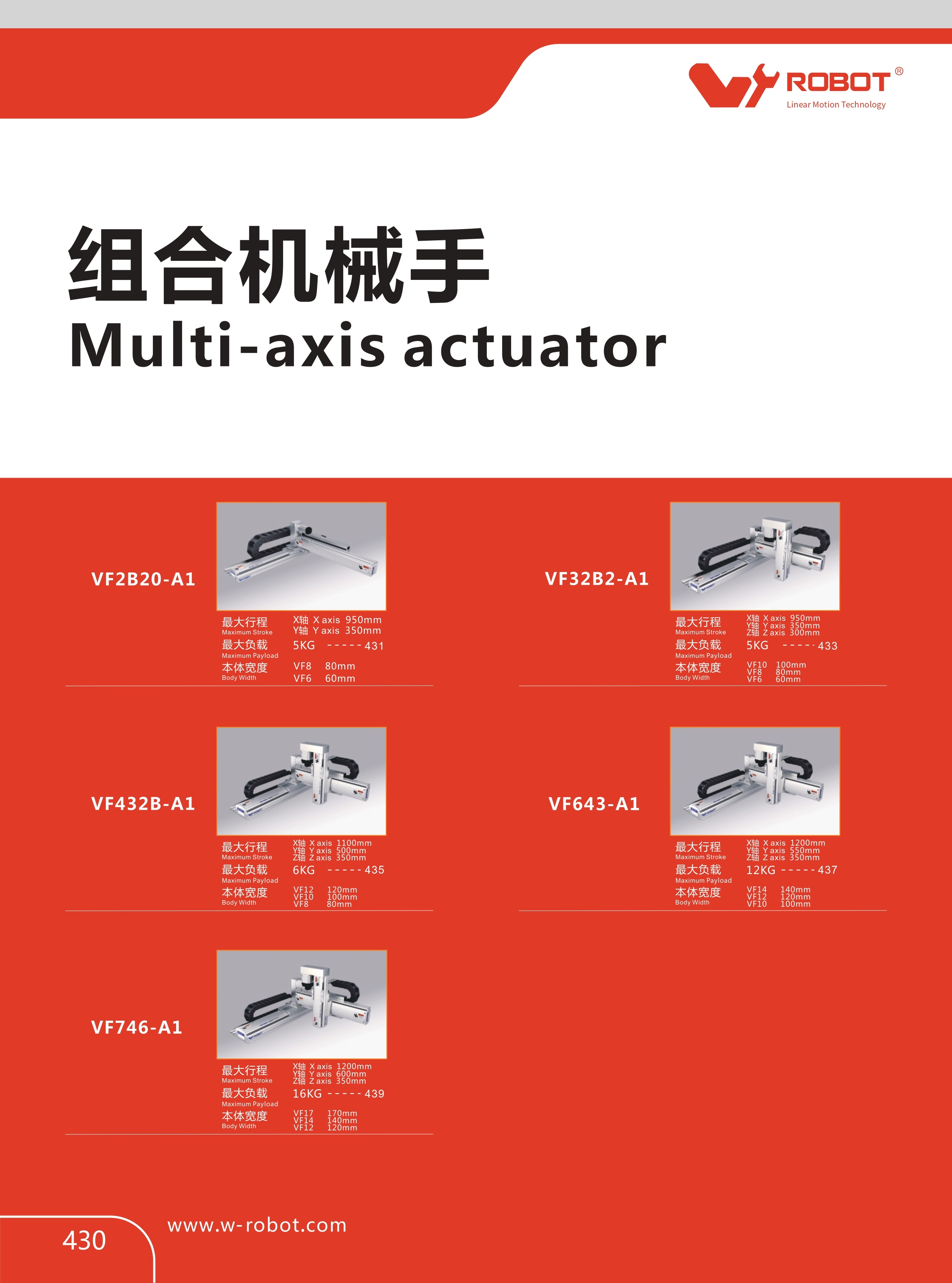

VF32B2-Multi-axis actuator

X-axis100-950mm Y axis ；100-350mm Z axis ；100-300mm

Category:

Aluminum Framing-Light Load

E-mail

Telephone

Product Details
Application Cases
Related downloads

High Precision · Modular Design · Flexible Automation
Ⅰ. Product Overview
The VF32B2 Multi-axis Actuator from W-Robot is a compact, high-performance motion module designed for multi-directional linear movement in automated machinery.
By integrating multiple precision linear stages into a single unit, the VF32B2 achieves coordinated motion across two or more axes—ideal for complex automation tasks such as assembly, inspection, and high-precision positioning.
Each axis uses a robust screw-driven or belt-driven transmission, ensuring smooth motion, high rigidity, and superior repeatability. The modular structure allows for various configurations (XY, XYZ, or gantry types), offering exceptional flexibility for system integration.
With its durable design, excellent positioning accuracy, and easy customization, the VF32B2 enables engineers to build efficient and compact automation systems that meet modern manufacturing demands.
Ⅱ. Technical Features
Multi-axis integration: Available in XY, XZ, or XYZ configurations for compact automation setups.
High precision: Repeatability up to ±0.01 mm with optional linear encoder feedback.
Modular compatibility: Supports various combinations of belt-driven and ball screw stages.
Customizable stroke: Each axis supports travel length adjustment for specific layouts.
Flexible motor mounting: Compatible with servo, stepper, or direct-drive rotary motors.
Rigid aluminum frame: Ensures long-term stability and reduced vibration.
Easy maintenance: Designed with accessible lubrication points and optional enclosed covers.
Ⅲ. Application Fields
The VF32B2 is widely used in:
Electronic assembly lines (component placement, soldering automation)
Precision inspection and measurement systems
Semiconductor and PCB handling
Medical and laboratory equipment automation
Optical component alignment and positioning
Light machining and packaging systems
Its integrated motion control capabilities make it an ideal foundation for complex, high-speed automation platforms.
Ⅳ. Model Selection & Customization
W-Robot offers a full range of customization for the VF series:
Stroke and travel length per axis
Axis combination (X, XY, XYZ, or custom gantry)
Motor flange and coupling interface design
Control system integration and I/O configuration
Load and acceleration optimization based on system requirements
CAD models (2D/3D) and complete technical documentation available upon request
Ⅴ. Product Advantages
Modular multi-axis design for flexible configurations
High repeatability and dynamic motion response
Compact size with strong rigidity
Easy integration with external control systems
Minimal maintenance and long service life
Cost-efficient solution for high-precision automation
Ⅵ. Installation & Maintenance
Ensure the mounting base is flat, rigid, and free of vibration.
Check and calibrate each axis alignment before operation.
Maintain proper lubrication of guide rails and ball screws.
Inspect electrical connections and tighten motor interfaces regularly.
Periodically verify repeatability and accuracy every 6–12 months.
Avoid dust, humidity, or corrosive environments during operation.
Ⅶ. Learn More
Explore more with W-Robot:
Product catalog and CAD downloads at www.w-robot.com
Technical article: “How Multi-axis Actuators Optimize Modern Automation”
Contact W-Robot’s engineering team for custom motion solutions and integration support.
Related Products
Rack and Pinion Linear Module – VG17
Coreless U-shaped Motor – VDX30-C1
Direct Drive Rotary Motor – DDRE-224-062
Timing Belt Linear Module – EB6ZR

Factory Workshop

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

FAQ

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

What are the future development trends of linear modules and linear motors?

In the future, linear modules and linear motors will develop towards higher precision, higher speed, smaller size, intelligence, and integration with other advanced technologies (such as artificial intelligence and the Internet of Things).

What parameters need to be provided for customized linear motors?

It is necessary to provide detailed parameters such as load weight, stroke, speed, acceleration, accuracy requirements, installation method, and operating environment so that the manufacturer can design and manufacture a linear motor that meets the requirements.

How long is the customization cycle of linear modules?

The customization cycle depends on the complexity of the customization and the manufacturer's production capacity, generally about 1-4 weeks. The specific time can be determined by communicating with the manufacturer.

Can linear motors be upgraded?

The performance of linear motors can be improved by upgrading them with high-performance drives, optimizing control system parameters, and improving heat dissipation structures.

Is it easy to upgrade the linear module?

It is relatively easy to upgrade the motor, control system, guide rail and other components of the linear module according to actual needs to improve its performance and accuracy.

What is the after-sales maintenance service of linear motors?

Regular manufacturers usually provide comprehensive after-sales maintenance services, including fault diagnosis, maintenance guidance, parts replacement, etc., but the response speed and quality of after-sales maintenance services may vary from manufacturer to manufacturer.

What is the warranty period for linear modules?

The warranty period of linear modules from different manufacturers varies, generally around 1-2 years. The specific warranty period can be confirmed with the manufacturer at the time of purchase.

What should we pay attention to when integrating linear motors with other equipment?

Attention should be paid to issues such as interface compatibility, signal matching, control logic coordination, and installation space and layout between devices to ensure that the devices can work together.

Can the linear module be integrated with other equipment?

Absolutely. Linear modules can be integrated with other devices such as robots, sensors, and vision systems to build more complex and intelligent automated production lines.

What kind of control system do linear motors require?

Linear motors typically require a high-performance motion control system that can achieve precise position control, speed control, and thrust control, such as a dedicated linear motor drive with a motion control card or a high-end PLC.
