Name: Ball Screw Linear Actuator-QF10
Brand: W-ROBOT

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

[email protected]

E-mail

+86 13049770422

Telephone

+86 13360462722

Ball Screw Linear Actuator-QF10

Max Stroke ；420mm Max Load ；65Kg Body Width ；100mm Rep. Precision ；±0.006mm

Category:

QF Series（Ultra Thin、Short Stroke）

E-mail

Telephone

Product Details
Application Cases
Related downloads

Ball Screw Linear Actuator – QF10
Precision Motion · High Rigidity · Compact Industrial Design
1. Product Overview
The QF10 Ball Screw Linear Actuator by Willbot is a high-performance linear motion solution that combines precision ball screw transmission with a robust structural design.
It delivers excellent positioning accuracy, smooth linear motion, and strong load-bearing capability, making it ideal for automation systems, semiconductor equipment, optical alignment, and medical devices.
With its compact size, low friction, and long service life, the QF10 ensures stable, repeatable performance even under continuous operation, offering an efficient and reliable foundation for high-precision motion systems.
2. Technical Features
Precision ball screw drive with minimal backlash
Compact and rigid aluminum body design
High repeatability and excellent speed-load balance
Low noise and smooth operation
Compatible with servo or stepper motor systems
Supports horizontal, vertical, and multi-axis configurations
Optional dust-proof cover and limit sensor integration
3. Application Fields
The QF10 Ball Screw Linear Actuator is widely used in:
Semiconductor and electronics assembly systems
Automated optical inspection and laser-processing stations
Precision measurement and testing instruments
Industrial robots and pick-and-place platforms
Medical and laboratory automation devices
Packaging and precision handling equipment
Its superior accuracy and stability make it ideal for high-speed, high-demand linear positioning environments.
4. Model Selection & Customization
Willbot offers flexible customization options for the QF10 series:
Custom stroke lengths and lead specifications
Optional screw configurations for speed or torque optimization
Compatible with various motor types and mounting options
Integrated accessories such as sensors, brackets, and couplings
Support for multi-axis configurations and system integration
Optional design modification for installation compatibility
5. More Information

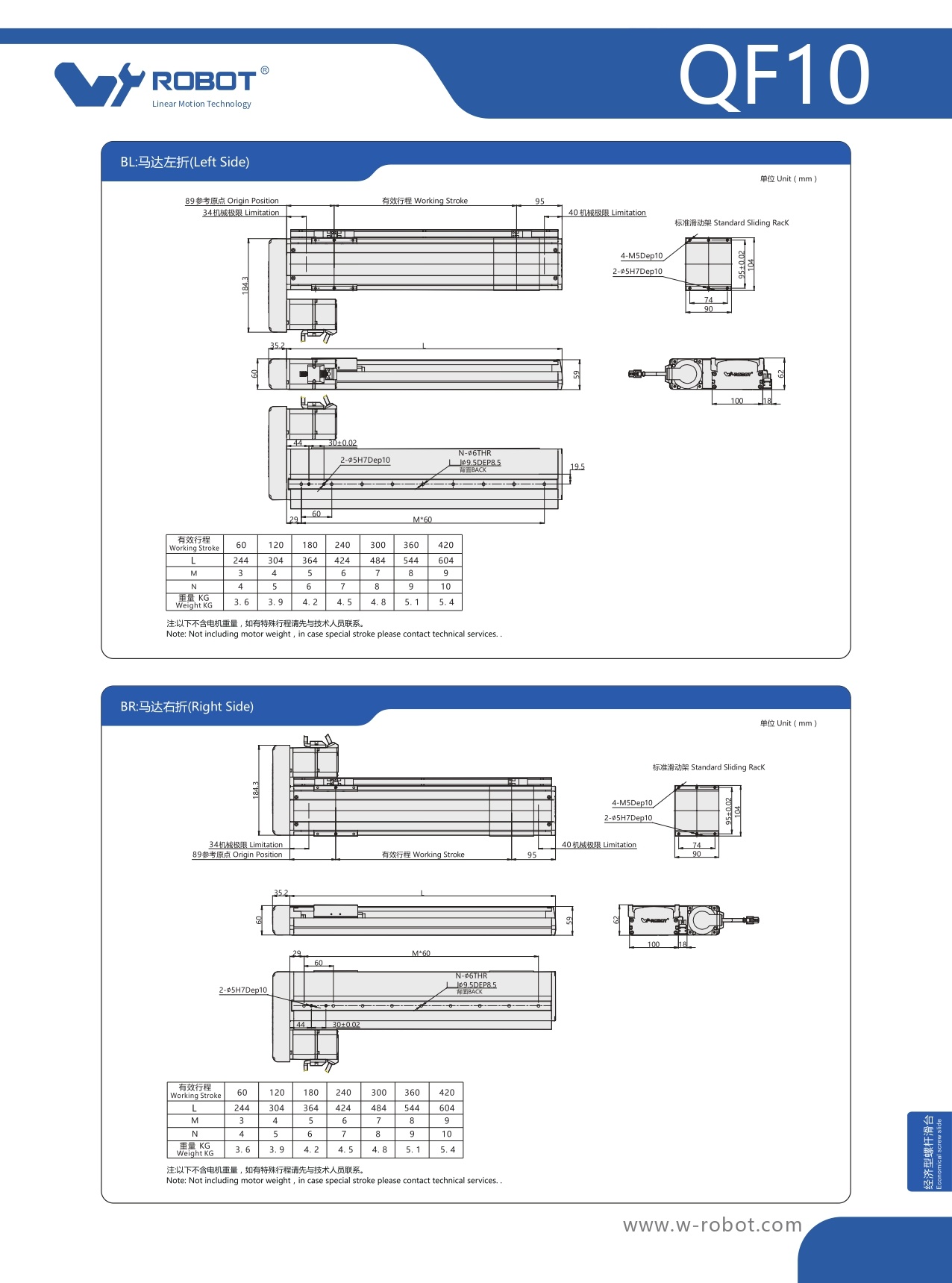

For detailed specifications, load curves, and technical drawings of the QF10, please contact the Willbot technical team.
Our engineers provide complete support for selection, system integration, and project application to ensure high-performance and precise motion control.
6. Product Advantages
High precision with ±0.01 mm positioning repeatability
Smooth motion with minimal vibration
Compact and lightweight structure
Long service life with minimal maintenance
Flexible installation and expansion capability
Reliable 24/7 continuous operation performance
The QF10 represents Willbot’s pursuit of precision and durability in automation, ensuring efficiency and stability in every movement.
7. Installation & Maintenance
Ensure a rigid, flat base for installation
Maintain guide alignment to prevent offset loading
Regularly lubricate the ball screw and check preload tension
Keep the actuator clean and free from dust
Perform calibration checks for precision applications
Recommended inspection every 6–12 months for optimal performance
8. Learn More
Recommended Articles:
“Willbot’s Precision Motion Systems: Powering the Future of Automation”
“How Linear Motion Redefines Smart Manufacturing Efficiency”
Explore More Willbot Products:
Ball Screw Linear Actuator Series
Linear Motor Module Series
Electric Cylinder Module Series
Semi-sealed Screw Module Series

Factory Workshop

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

FAQ

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

What are the future development trends of linear modules and linear motors?

In the future, linear modules and linear motors will develop towards higher precision, higher speed, smaller size, intelligence, and integration with other advanced technologies (such as artificial intelligence and the Internet of Things).

What parameters need to be provided for customized linear motors?

It is necessary to provide detailed parameters such as load weight, stroke, speed, acceleration, accuracy requirements, installation method, and operating environment so that the manufacturer can design and manufacture a linear motor that meets the requirements.

How long is the customization cycle of linear modules?

The customization cycle depends on the complexity of the customization and the manufacturer's production capacity, generally about 1-4 weeks. The specific time can be determined by communicating with the manufacturer.

Can linear motors be upgraded?

The performance of linear motors can be improved by upgrading them with high-performance drives, optimizing control system parameters, and improving heat dissipation structures.

Is it easy to upgrade the linear module?

It is relatively easy to upgrade the motor, control system, guide rail and other components of the linear module according to actual needs to improve its performance and accuracy.

What is the after-sales maintenance service of linear motors?

Regular manufacturers usually provide comprehensive after-sales maintenance services, including fault diagnosis, maintenance guidance, parts replacement, etc., but the response speed and quality of after-sales maintenance services may vary from manufacturer to manufacturer.

What is the warranty period for linear modules?

The warranty period of linear modules from different manufacturers varies, generally around 1-2 years. The specific warranty period can be confirmed with the manufacturer at the time of purchase.

What should we pay attention to when integrating linear motors with other equipment?

Attention should be paid to issues such as interface compatibility, signal matching, control logic coordination, and installation space and layout between devices to ensure that the devices can work together.

Can the linear module be integrated with other equipment?

Absolutely. Linear modules can be integrated with other devices such as robots, sensors, and vision systems to build more complex and intelligent automated production lines.

What kind of control system do linear motors require?

Linear motors typically require a high-performance motion control system that can achieve precise position control, speed control, and thrust control, such as a dedicated linear motor drive with a motion control card or a high-end PLC.
