Flat motors with iron core VJMS-75 Series

- High tech DDT telescopic cone - Multiple inverted forming slingshot ejector pin - Two color large mold lock - Super wear-resistant secondary ejection - Ultra large precision threaded core

Category:

VJMS Series (Iron Core Linear Motor)

E-mail

Telephone

Product Details
Application Cases
Related downloads

Flat Motors with Iron Core – VJMS-75 Series
Ultra-High Thrust · Precision Motion · Advanced Direct-Drive Linear Technology
1. Product Overview (Product Overview)
The W-ROBOT VJMS-75 Series Flat Motors represent a new generation of iron-core linear motor technology, delivering ultra-high thrust, precise positioning, and exceptional acceleration for demanding industrial applications.
Engineered with an optimized magnetic circuit and reinforced iron-core coil design, the VJMS-75 offers superior force density, thermal performance, and motion stability even under high-duty cycles.
By eliminating mechanical transmission components such as ball screws and belts, this series achieves true zero-backlash, high dynamic response, and maintenance-free linear motion, ideal for next-generation automation systems.
2. Technical Features (Technical Features)
Iron-core coil architecture for maximum thrust output and thermal efficiency
High dynamic acceleration and speed, suitable for rapid linear positioning
Low cogging and smooth motion, optimized for precision manufacturing
Advanced heat dissipation design, supporting air or water cooling
Compact and rigid construction for stability and integration flexibility
High electromagnetic efficiency, reducing energy loss and heat generation
Compatible with major servo drive systems and encoder feedback
Available in multiple coil and magnet lengths to fit diverse machine layouts
3. Application Fields (Application Fields)
The VJMS-75 Series Flat Motors are widely used in:
Semiconductor and electronics assembly systems
Laser cutting, marking, and welding platforms
CNC precision machining and surface grinding equipment
High-speed pick-and-place automation
Optical inspection and metrology systems
Industrial robotics and multi-axis gantry modules
With outstanding linear force and superior stability, the VJMS-75 Series delivers unmatched performance for high-end manufacturing and automation.

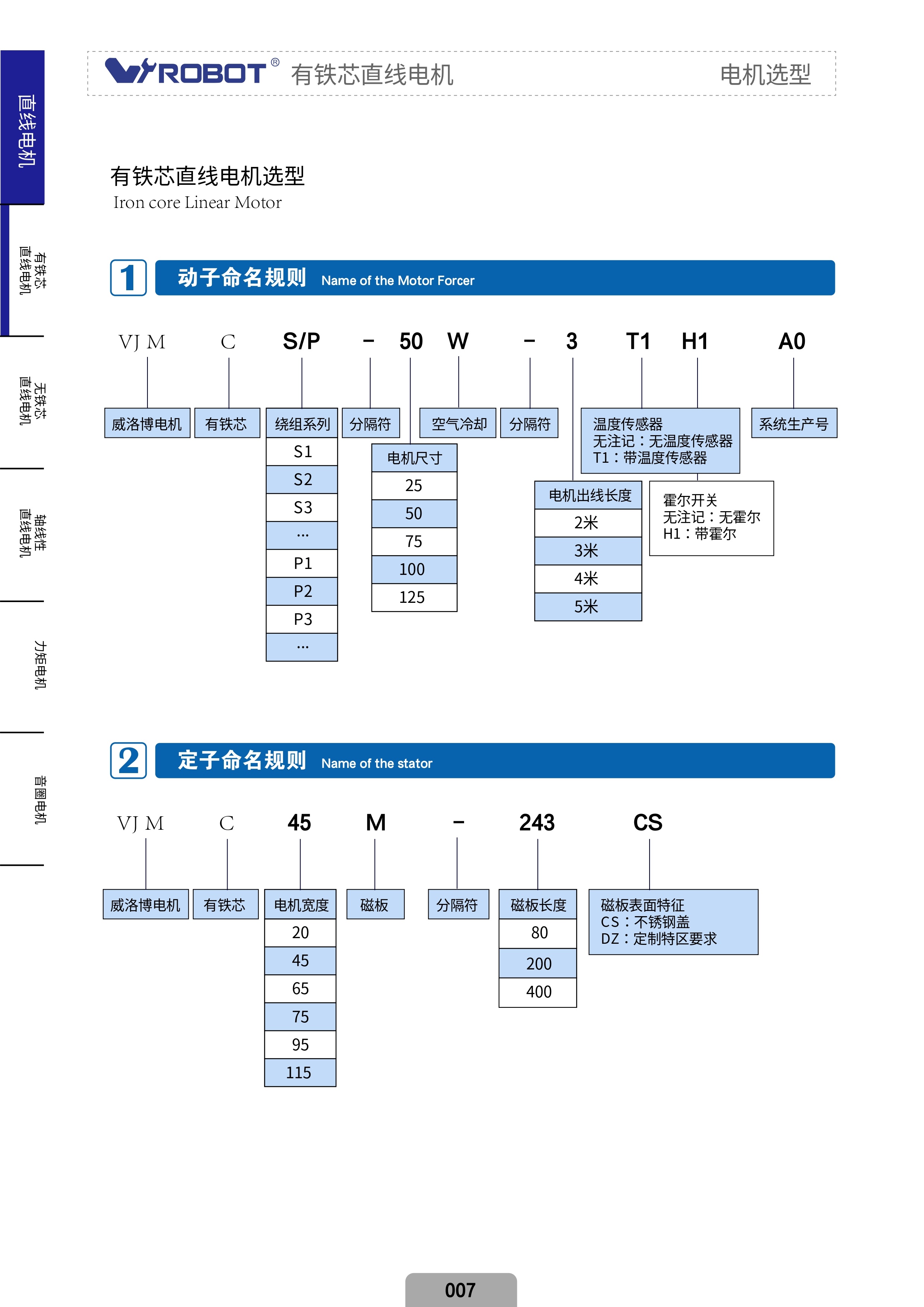

4. Model Selection & Customization (Model Selection & Customization)
To meet diverse industrial needs, W-ROBOT offers comprehensive customization options for the VJMS-75 Series:
Customizable thrust force, stroke length, and speed range
Optional cooling methods: natural convection, forced air, or water cooling
Configurable mounting orientations and mechanical interfaces
Compatible with multiple drive controllers and feedback encoders
Integration-ready 2D/3D CAD files and technical data packages
Available multi-axis configuration for gantry or hybrid motion platforms
5. More Information (More Information)
For detailed technical specifications, performance curves, and engineering integration support,
please contact the W-ROBOT technical team.
Our experts provide tailored motion control solutions, thermal analysis, and drive system recommendations to ensure peak system performance in your application environment.
6. Product Advantages (Product Advantages)
Ultra-high thrust and force density with stable operation
Precision linear motion with minimal cogging effects
Compact and robust design for flexible integration
High acceleration and excellent thermal management
Low noise, zero backlash, and no mechanical wear
Easy integration with major industrial controllers
Designed for continuous 24/7 operation in demanding environments
7. Installation & Maintenance (Installation & Maintenance)
Ensure a rigid, flat mounting surface to maintain alignment
Keep magnetic track and coil units clean and free of metal particles
Regularly inspect encoder feedback and cooling performance
Secure all fasteners with specified torque to prevent vibration
Avoid exposure to high humidity, magnetic interference, and extreme temperatures
Perform system checks every 6–12 months for sustained precision and stability
8. Learn More (Learn More)
Recommended Reading:
“The Power of Iron-Core Linear Motors in High-Precision Manufacturing”
“Direct-Drive Motion: Redefining Industrial Speed and Accuracy”
Explore Related Products:
VJMS-50 Series Flat Motors
VGL20 Linear Motor Module
VL22 Linear Motor Module
VGTH15 Ball Screw Linear Module
VGTY20 Electric Cylinder Module

Factory Workshop

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

FAQ

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

What are the future development trends of linear modules and linear motors?

In the future, linear modules and linear motors will develop towards higher precision, higher speed, smaller size, intelligence, and integration with other advanced technologies (such as artificial intelligence and the Internet of Things).

What parameters need to be provided for customized linear motors?

It is necessary to provide detailed parameters such as load weight, stroke, speed, acceleration, accuracy requirements, installation method, and operating environment so that the manufacturer can design and manufacture a linear motor that meets the requirements.

How long is the customization cycle of linear modules?

The customization cycle depends on the complexity of the customization and the manufacturer's production capacity, generally about 1-4 weeks. The specific time can be determined by communicating with the manufacturer.

Can linear motors be upgraded?

The performance of linear motors can be improved by upgrading them with high-performance drives, optimizing control system parameters, and improving heat dissipation structures.

Is it easy to upgrade the linear module?

It is relatively easy to upgrade the motor, control system, guide rail and other components of the linear module according to actual needs to improve its performance and accuracy.

What is the after-sales maintenance service of linear motors?

Regular manufacturers usually provide comprehensive after-sales maintenance services, including fault diagnosis, maintenance guidance, parts replacement, etc., but the response speed and quality of after-sales maintenance services may vary from manufacturer to manufacturer.

What is the warranty period for linear modules?

The warranty period of linear modules from different manufacturers varies, generally around 1-2 years. The specific warranty period can be confirmed with the manufacturer at the time of purchase.

What should we pay attention to when integrating linear motors with other equipment?

Attention should be paid to issues such as interface compatibility, signal matching, control logic coordination, and installation space and layout between devices to ensure that the devices can work together.

Can the linear module be integrated with other equipment?

Absolutely. Linear modules can be integrated with other devices such as robots, sensors, and vision systems to build more complex and intelligent automated production lines.

What kind of control system do linear motors require?

Linear motors typically require a high-performance motion control system that can achieve precise position control, speed control, and thrust control, such as a dedicated linear motor drive with a motion control card or a high-end PLC.
