VDX65 Direct Drive Rotary Motor

Motor width: 150mm Motor height: 80mm Mounting hole spacing: 120mm (center distance) Mover length: Standard length 250mm Stator cross-section: 65×80mm rectangular cross-section

Category:

VDX Series (Coreless Linear Motor)

E-mail

Telephone

Product Details
Application Cases
Related downloads

VDX65 Direct Drive Rotary Motor
High Torque · Zero Backlash · Superior Dynamic Performance
Ⅰ. Product Overview
The VDX65 Direct Drive Rotary Motor from W-Robot is a high-precision, high-torque rotary actuator designed to deliver smooth, accurate, and backlash-free motion. By eliminating mechanical transmission elements such as gears or belts, the VDX65 ensures direct torque transmission, instant response, and exceptional repeatability, making it ideal for precision automation and robotic systems.
Featuring a compact yet powerful design, the VDX65 motor integrates advanced magnetic circuit optimization and high-efficiency winding technology. It delivers outstanding torque density and stability — perfect for demanding environments in semiconductor handling, optical inspection, and multi-axis robotic platforms.
Ⅱ. Technical Features
Direct Drive Architecture – zero mechanical backlash and no wear parts for ultimate precision.
High Torque Output – powerful magnetic design offering high continuous torque in a compact housing.
Ultra-Low Cogging – smooth rotation suitable for inspection, vision tracking, and scanning systems.
Fast Response – minimal inertia for high dynamic acceleration and deceleration.
Hollow Shaft Option – enables cable, vacuum, or air line routing through the motor.
High-Resolution Feedback – supports absolute or incremental encoders for micron-level accuracy.
Maintenance-Free – long service life with no need for lubrication or periodic replacement.
Ⅲ. Application Fields
The VDX65 motor is widely adopted across automation industries such as:
Semiconductor wafer alignment and testing
High-speed robot arm rotary joints
Optical inspection and measurement systems
Precision CNC indexing tables
Laser cutting and printing equipment
Aerospace and defense motion control
Its compact structure and zero-backlash direct drive mechanism make VDX65 ideal for tasks requiring both high torque and sub-micron positioning precision.

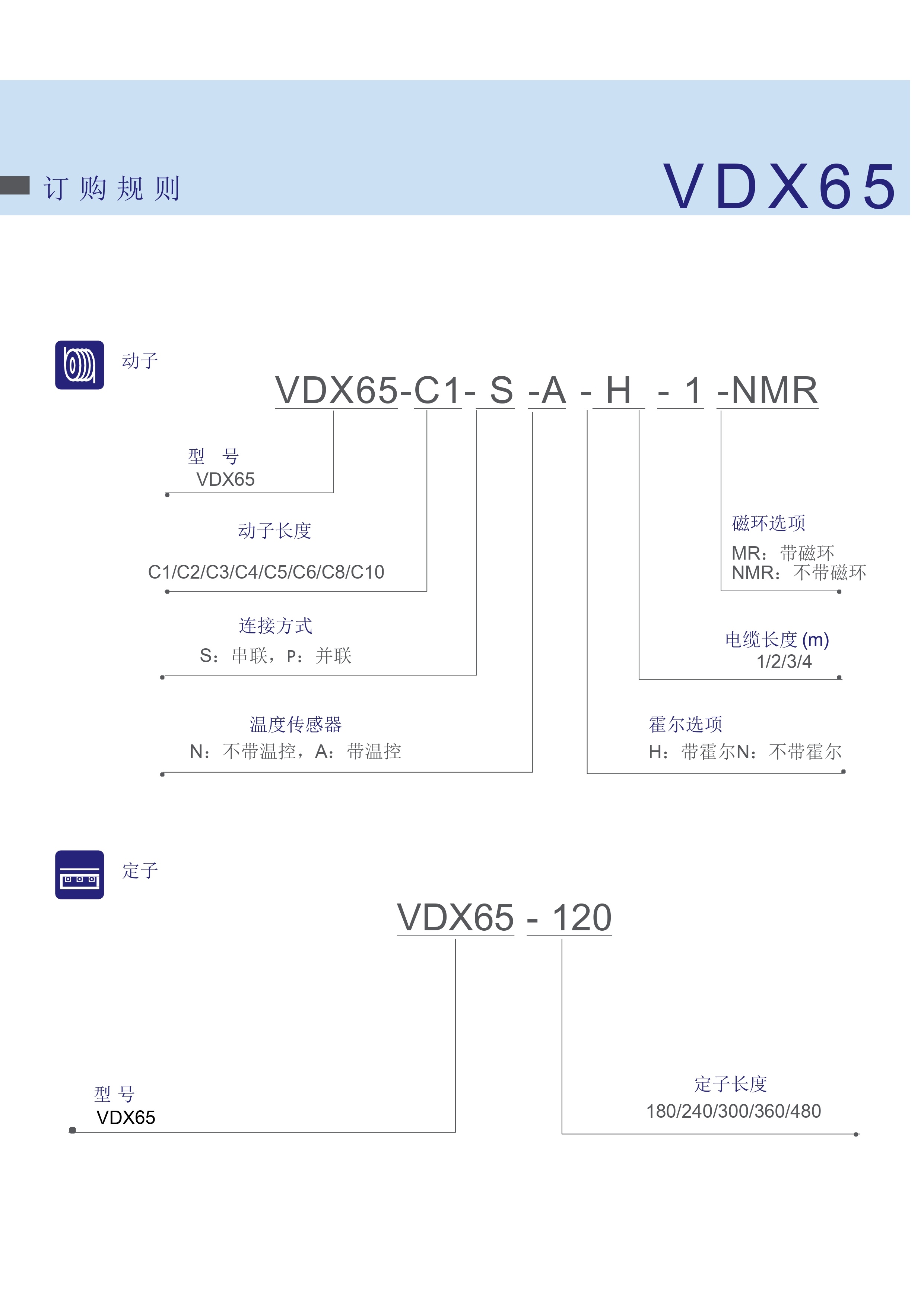

Ⅳ. Model Selection & Customization
W-Robot provides full customization for the VDX Series, including:
Torque, inertia, and speed optimization for target load profiles
Optional shaft design (solid/hollow) and flange interface
Integration with optical, magnetic, or resolver feedback
Water or air cooling options for thermal management
Custom cable routing and drive interface matching
Multi-axis configurations (rotary-linear or dual rotary systems)
For complete model data and CAD drawings, visit www.w-robot.com.
Ⅴ. Product Advantages
Zero mechanical backlash for maximum positioning precision
Compact structure with high torque output
Smooth and silent operation – ideal for precision automation
Maintenance-free design, ensuring long-term stability
Compatible with multiple servo drives and control systems
Excellent reliability in continuous operation environments
Ⅵ. Installation & Maintenance
Ensure precise alignment during installation to prevent axial or radial stress
Secure all bolts using the specified torque values
Avoid external impacts on the motor housing and shaft
Maintain a clean, temperature-controlled operating environment
Shield encoder cables to minimize electrical noise interference
Check performance periodically to ensure consistent accuracy
Ⅶ. Learn More
Explore more at www.w-robot.com:
Download the VDX Series catalog and 3D models
Read: “Direct Drive Technology and Its Role in Next-Generation Robotics”
Contact W-Robot engineers for selection and integration guidance
