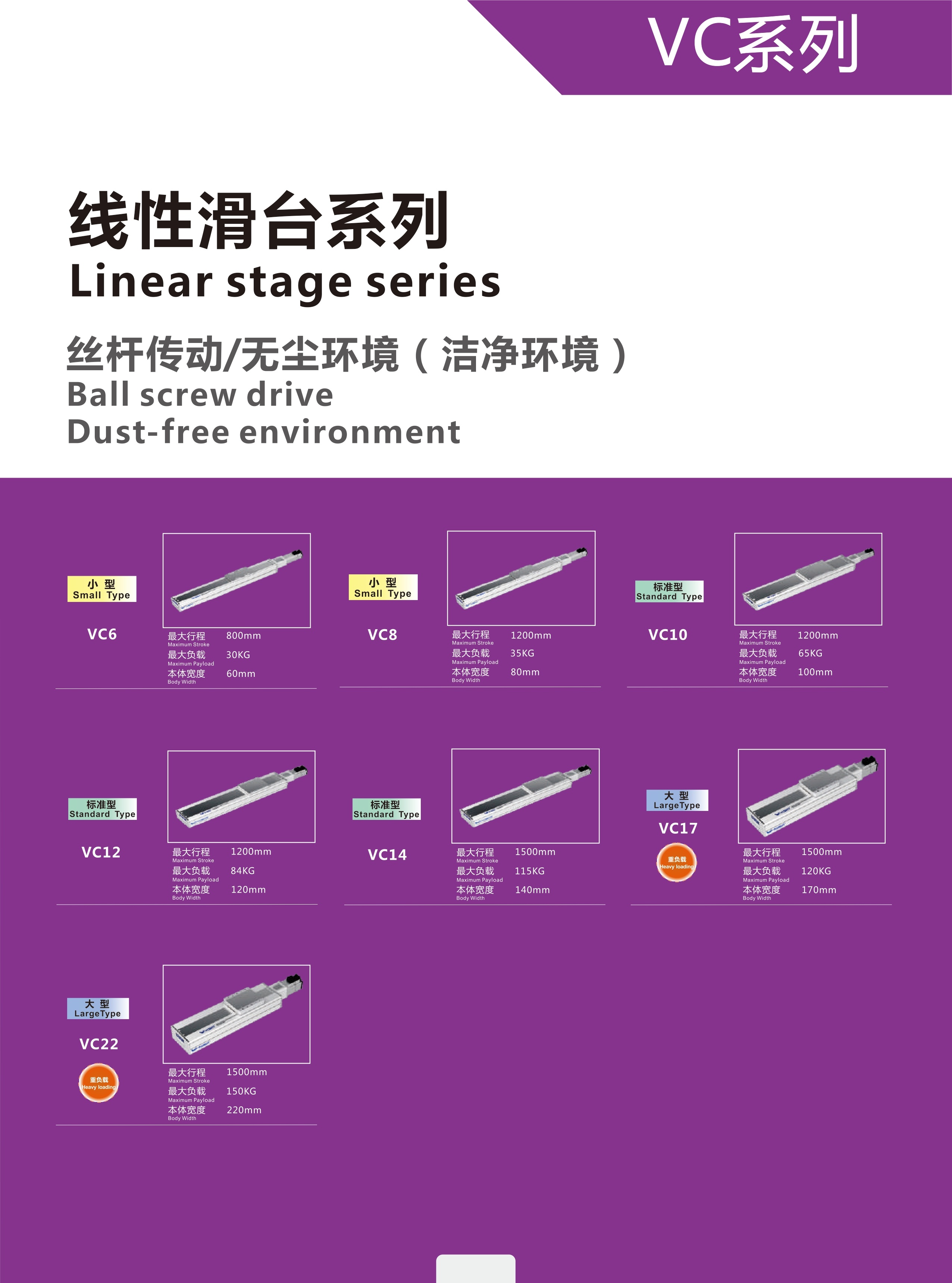

Dustproof Screw Module-VC6

Maximum stroke ；800mm maximum load ；30kg Repeat positioning accuracy ；±0.01mm (Grade C7) Body width ；60mm

Category:

VC Series（Anti Torsion、Heavy Load）

E-mail

Telephone

Product Details
Application Cases
Related downloads

Screw Module VC6
Compact Design · High Precision · Smooth Linear Transmission
1. Product Overview
The W-ROBOT VC6 Screw Module is a compact and high-precision linear motion module driven by a ball screw system, engineered for automation equipment that demands stability, repeatability, and efficient transmission.
With its lightweight body, optimized screw pitch, and high-rigidity frame, the VC6 ensures smooth motion even during high-speed, high-frequency operation.
Ideal for optical inspection, semiconductor processing, and micro-assembly applications, the VC6 provides an excellent balance between space efficiency and motion accuracy.
2. Technical Features
High-precision ball screw drive, ensuring accurate and consistent positioning
Compact cross-sectional design for small automation systems
High rigidity aluminum housing to reduce vibration and improve dynamic stability
Smooth and low-noise operation, suitable for cleanroom applications
Modular motor mounting options for servo or stepper motors
Customizable stroke and lead pitch based on motion requirements
Optional semi-sealed structure to prevent dust and particle ingress
Multi-axis combination support for X/Y/Z configurations
3. Application Fields
The VC6 Screw Module is widely used in:
Automated optical inspection (AOI) systems
Semiconductor manufacturing and testing equipment
Precision assembly and alignment platforms
Medical and laboratory automation systems
Dispensing, bonding, and laser marking systems
Compact robotic and pick-and-place mechanisms
4. Model Selection & Customization
W-ROBOT offers comprehensive customization options for the VC Series:
Customizable travel length, speed, and lead pitch
Optional feedback encoder and limit sensor configuration
Compatible with major servo drive systems
Choice of mounting orientation (horizontal, vertical, inverted)
Multi-axis combinations (X/Y/Z) available upon request
Detailed 2D/3D CAD drawings and technical documentation provided
5. Product Advantages
Compact and modular design for flexible installation
High accuracy and repeatability with minimal backlash
Durable mechanical structure for long service life
Low friction and reduced maintenance requirements
Smooth, quiet operation suitable for precision tasks
Strong compatibility with multiple control systems
6. Installation & Maintenance
Ensure flat and rigid mounting surfaces for stable alignment
Keep ball screw and linear guides clean and lubricated regularly
Avoid dust, moisture, and excessive vibration during operation
Verify motor alignment and coupling tightness before use
Periodically inspect motion smoothness and positioning accuracy
Maintenance cycle: every 6–12 months for optimal performance
7. Typical Applications
Laser engraving and micro-machining systems
Optical measurement and positioning platforms
Compact pick-and-place automation units
Semiconductor wafer transfer modules
Life science and laboratory automation tools
Electronic component handling and assembly
8. Learn More
Explore more precision motion products from W-ROBOT:
VGTH Series – Fully Enclosed Ball Screw Modules
VGL Series – Linear Motor Modules
VGTY Series – Electric Cylinders
EPG Series – Electric Grippers

Factory Workshop

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

FAQ

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

What are the future development trends of linear modules and linear motors?

In the future, linear modules and linear motors will develop towards higher precision, higher speed, smaller size, intelligence, and integration with other advanced technologies (such as artificial intelligence and the Internet of Things).

What parameters need to be provided for customized linear motors?

It is necessary to provide detailed parameters such as load weight, stroke, speed, acceleration, accuracy requirements, installation method, and operating environment so that the manufacturer can design and manufacture a linear motor that meets the requirements.

How long is the customization cycle of linear modules?

The customization cycle depends on the complexity of the customization and the manufacturer's production capacity, generally about 1-4 weeks. The specific time can be determined by communicating with the manufacturer.

Can linear motors be upgraded?

The performance of linear motors can be improved by upgrading them with high-performance drives, optimizing control system parameters, and improving heat dissipation structures.

Is it easy to upgrade the linear module?

It is relatively easy to upgrade the motor, control system, guide rail and other components of the linear module according to actual needs to improve its performance and accuracy.

What is the after-sales maintenance service of linear motors?

Regular manufacturers usually provide comprehensive after-sales maintenance services, including fault diagnosis, maintenance guidance, parts replacement, etc., but the response speed and quality of after-sales maintenance services may vary from manufacturer to manufacturer.

What is the warranty period for linear modules?

The warranty period of linear modules from different manufacturers varies, generally around 1-2 years. The specific warranty period can be confirmed with the manufacturer at the time of purchase.

What should we pay attention to when integrating linear motors with other equipment?

Attention should be paid to issues such as interface compatibility, signal matching, control logic coordination, and installation space and layout between devices to ensure that the devices can work together.

Can the linear module be integrated with other equipment?

Absolutely. Linear modules can be integrated with other devices such as robots, sensors, and vision systems to build more complex and intelligent automated production lines.

What kind of control system do linear motors require?

Linear motors typically require a high-performance motion control system that can achieve precise position control, speed control, and thrust control, such as a dedicated linear motor drive with a motion control card or a high-end PLC.
