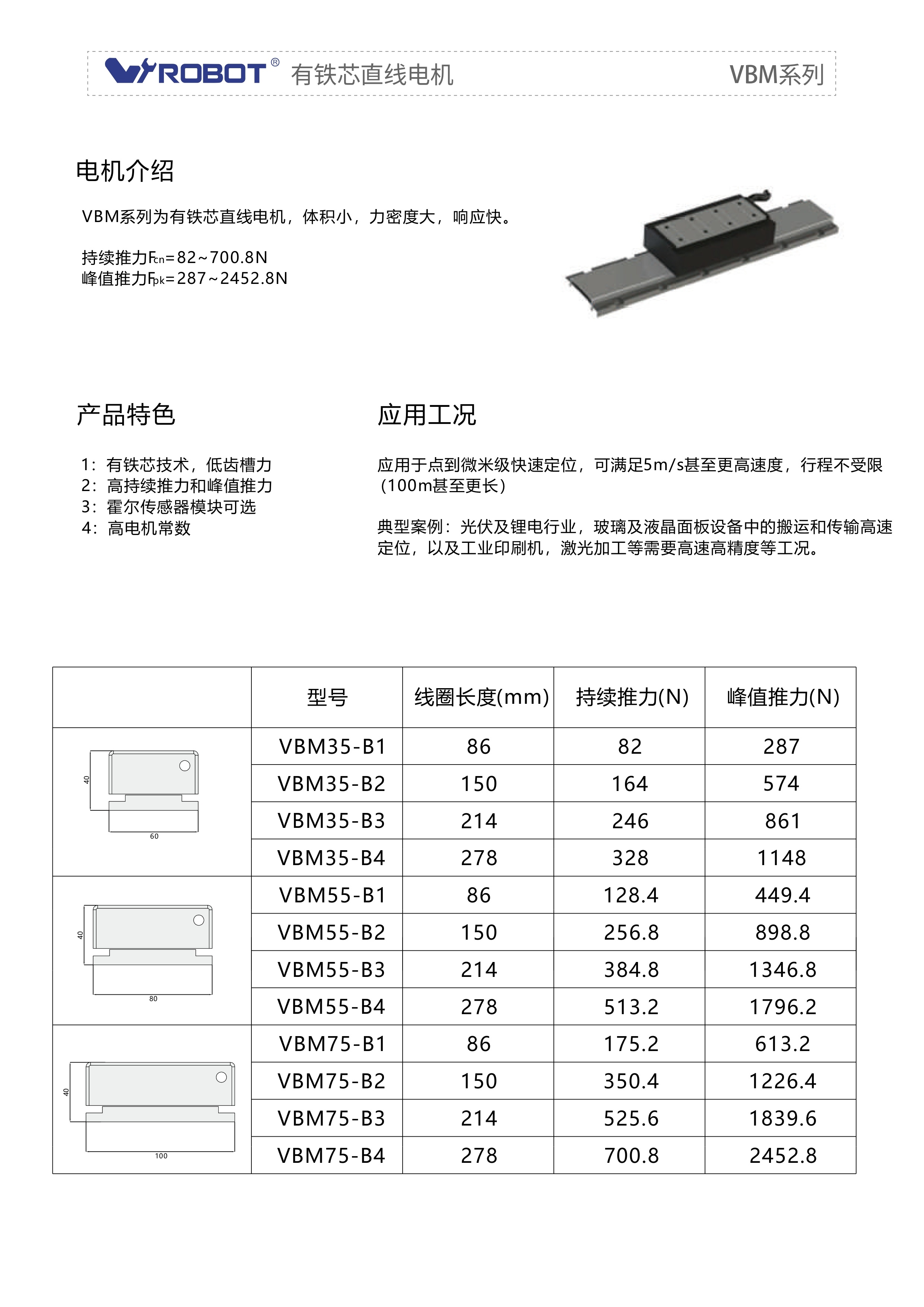

Name: Flat motors with iron core VBM55 Series
Brand: W-ROBOT

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

[email protected]

E-mail

+86 13049770422

Telephone

+86 13360462722

Flat motors with iron core VBM55 Series

- High tech DDT telescopic cone - Multiple inverted forming slingshot ejector pin - Two color large mold lock - Super wear-resistant secondary ejection - Ultra large precision threaded core

Category:

VBM Series (Iron Core Linear Motor)

E-mail

Telephone

Product Details
Application Cases
Related downloads

Flat Motors with Iron Core – VBM55 Series
High Thrust · High Efficiency · Compact Direct-Drive Motion Platform
1. Product Overview (Product Overview)
The W-ROBOT VBM55 Series Flat Motors are iron-core linear motors designed for demanding high-thrust and high-speed industrial applications.
With an optimized magnetic circuit and advanced electromagnetic design, the VBM55 series delivers strong continuous thrust, high acceleration, and excellent thermal stability, making it ideal for precision automation and continuous motion control systems.
Its flat and compact structure allows flexible integration into multi-axis, gantry, or vertical motion systems where space efficiency and performance reliability are both critical.
2. Technical Features (Technical Features)
High-thrust iron-core coil design for superior force density
Optimized magnetic structure to minimize cogging and vibration
High acceleration and deceleration response for dynamic operations
Excellent heat dissipation, compatible with air or water cooling
Compact motor form for easy integration into tight assemblies
Low noise and stable linear motion during high-frequency operation
Multiple feedback options, including optical and magnetic encoders
Compatible with all major servo drive brands for system flexibility
3. Application Fields (Application Fields)
The VBM55 Series is widely applied in high-performance motion control scenarios, including:
Semiconductor handling and wafer processing
Laser cutting, engraving, and marking systems
Precision measurement and optical inspection platforms
Robotic linear axes and high-speed pick-and-place systems
Automated assembly and packaging lines
Medical and laboratory automation equipment
Its strong thrust and compact body make it especially suited for high-speed gantry motion, long-travel precision positioning, and continuous duty operation.
4. Model Selection & Customization (Model Selection & Customization)
W-ROBOT offers custom configuration and selection services for the VBM55 series, ensuring seamless adaptation to various industrial requirements:
Customizable thrust level, stroke length, and travel speed
Support for air cooling, water cooling, or natural convection
Available in multiple feedback resolutions and signal types
Fully compatible with major servo systems (Delta, Yaskawa, Panasonic, etc.)
Optional custom mounting holes and magnet lengths
Supports multi-axis integration and gantry configurations
Provides 2D/3D drawings and detailed technical parameters upon request
5. More Information (More Information)
For additional details such as force–speed curves, motor specifications, or dimension drawings of the VBM55 Series,
please contact the W-ROBOT engineering support team.
Our technical experts will assist with motor selection, application matching, and complete automation drive solutions tailored to your system requirements.
6. Product Advantages (Product Advantages)
High continuous and peak thrust with compact dimensions
Zero mechanical transmission loss for maximum precision
Smooth and stable motion with minimal vibration
Fast response and high repeatability
Low noise and low maintenance design
High reliability for 24/7 industrial operation
Flexible integration with various motion platforms
Energy-efficient performance with long service life
7. Installation & Maintenance (Installation & Maintenance)
Ensure the mounting base is flat, rigid, and vibration-free
Keep the magnet track and coil area clean from dust or debris
Verify alignment and encoder signal accuracy during setup
Maintain proper cooling for consistent thermal performance
Avoid exposure to moisture, strong magnetic fields, or high temperatures
Perform routine system inspection every 6–12 months to ensure stability
Following these guidelines ensures long-term precision and durability of your motion system.
8. Learn More (Learn More)
Related Technical Articles:
“High-Thrust Flat Motors: Redefining Power Density in Automation”
“Iron-Core Linear Motors: The Backbone of Precision Motion Systems”
Explore Related Products:
VBM35 Series Flat Motors
VBM75 Series Flat Motors
VJMS-50 Series Flat Motors
VL17 Linear Motor Modules
VGL15 Linear Motor Modules

Factory Workshop

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

FAQ

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

What are the future development trends of linear modules and linear motors?

In the future, linear modules and linear motors will develop towards higher precision, higher speed, smaller size, intelligence, and integration with other advanced technologies (such as artificial intelligence and the Internet of Things).

What parameters need to be provided for customized linear motors?

It is necessary to provide detailed parameters such as load weight, stroke, speed, acceleration, accuracy requirements, installation method, and operating environment so that the manufacturer can design and manufacture a linear motor that meets the requirements.

How long is the customization cycle of linear modules?

The customization cycle depends on the complexity of the customization and the manufacturer's production capacity, generally about 1-4 weeks. The specific time can be determined by communicating with the manufacturer.

Can linear motors be upgraded?

The performance of linear motors can be improved by upgrading them with high-performance drives, optimizing control system parameters, and improving heat dissipation structures.

Is it easy to upgrade the linear module?

It is relatively easy to upgrade the motor, control system, guide rail and other components of the linear module according to actual needs to improve its performance and accuracy.

What is the after-sales maintenance service of linear motors?

Regular manufacturers usually provide comprehensive after-sales maintenance services, including fault diagnosis, maintenance guidance, parts replacement, etc., but the response speed and quality of after-sales maintenance services may vary from manufacturer to manufacturer.

What is the warranty period for linear modules?

The warranty period of linear modules from different manufacturers varies, generally around 1-2 years. The specific warranty period can be confirmed with the manufacturer at the time of purchase.

What should we pay attention to when integrating linear motors with other equipment?

Attention should be paid to issues such as interface compatibility, signal matching, control logic coordination, and installation space and layout between devices to ensure that the devices can work together.

Can the linear module be integrated with other equipment?

Absolutely. Linear modules can be integrated with other devices such as robots, sensors, and vision systems to build more complex and intelligent automated production lines.

What kind of control system do linear motors require?

Linear motors typically require a high-performance motion control system that can achieve precise position control, speed control, and thrust control, such as a dedicated linear motor drive with a motion control card or a high-end PLC.
