Universal Timming Belt Linear Module-EB6

Universal Timming Belt Linear Module-EB6

Motor power ；400W, 750W, 86-step Drive mode ；Timing belt driving Repeat positioning accuracy ；±0.05mm lead ；70mm、140mm fastest speed ；2000mm/s

Category:

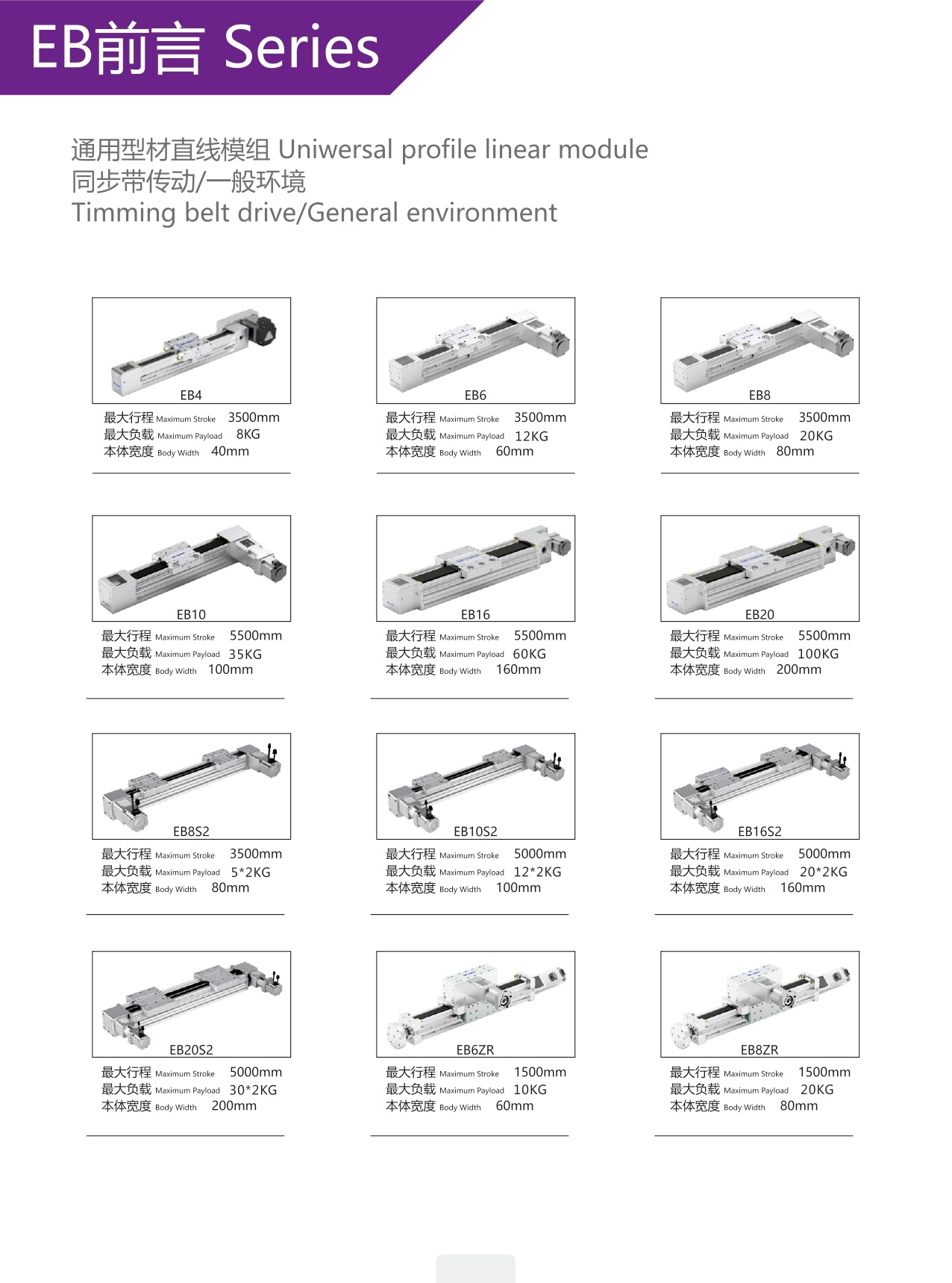

EB Series (Universal Timming Belt Linear Module)

E-mail

Telephone

Product Details
Application Cases
Related downloads

Product Overview
The Universal Timming Belt Linear Module – EB6 is a next-generation belt-driven linear actuator designed for high-speed automation applications. Built for precision, reliability, and flexibility, the EB6 module features a lightweight yet rigid aluminum profile structure, ideal for applications requiring long strokes and continuous dynamic motion. Its smooth linear transmission ensures stable operation with low noise and minimal maintenance requirements.
Whether integrated into a pick-and-place system, packaging line, or automated inspection platform, the EB6 offers high acceleration and velocity, making it a preferred solution in industries demanding fast and precise linear positioning.
Key Features
High-Speed Transmission: The optimized belt drive system delivers speeds up to 3000 mm/s, suitable for fast-moving automation lines.
Durable Construction: Anodized aluminum housing ensures structural rigidity and long-term stability even under heavy-duty conditions.
Low Maintenance: Belt tensioning and guide design reduce friction, lowering the need for frequent servicing.
Flexible Installation: Supports horizontal, vertical, and gantry configurations to meet diverse industrial layouts.
Quiet & Smooth Motion: Advanced pulley alignment technology minimizes vibration and operational noise.

Applications
Electronics Assembly & Automation Lines
Pick-and-Place Systems
Packaging & Labeling Machines
Medical and Semiconductor Equipment
Inspection and Measurement Systems
Why Choose the EB6 Series?
The EB6 Series is engineered for manufacturers who value efficiency, precision, and modular integration. Its balance of speed and durability reduces downtime, supports flexible production environments, and ensures reliable performance across multiple automation scenarios.
Related Products
Ball Screw Linear Actuator – QF8
Linear Motor Module – VL22
Electric Gripper – EPGC Series
Ball Screw Module – VGTH5

Factory Workshop

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

FAQ

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

What are the future development trends of linear modules and linear motors?

In the future, linear modules and linear motors will develop towards higher precision, higher speed, smaller size, intelligence, and integration with other advanced technologies (such as artificial intelligence and the Internet of Things).

What parameters need to be provided for customized linear motors?

It is necessary to provide detailed parameters such as load weight, stroke, speed, acceleration, accuracy requirements, installation method, and operating environment so that the manufacturer can design and manufacture a linear motor that meets the requirements.

How long is the customization cycle of linear modules?

The customization cycle depends on the complexity of the customization and the manufacturer's production capacity, generally about 1-4 weeks. The specific time can be determined by communicating with the manufacturer.

Can linear motors be upgraded?

The performance of linear motors can be improved by upgrading them with high-performance drives, optimizing control system parameters, and improving heat dissipation structures.

Is it easy to upgrade the linear module?

It is relatively easy to upgrade the motor, control system, guide rail and other components of the linear module according to actual needs to improve its performance and accuracy.

What is the after-sales maintenance service of linear motors?

Regular manufacturers usually provide comprehensive after-sales maintenance services, including fault diagnosis, maintenance guidance, parts replacement, etc., but the response speed and quality of after-sales maintenance services may vary from manufacturer to manufacturer.

What is the warranty period for linear modules?

The warranty period of linear modules from different manufacturers varies, generally around 1-2 years. The specific warranty period can be confirmed with the manufacturer at the time of purchase.

What should we pay attention to when integrating linear motors with other equipment?

Attention should be paid to issues such as interface compatibility, signal matching, control logic coordination, and installation space and layout between devices to ensure that the devices can work together.

Can the linear module be integrated with other equipment?

Absolutely. Linear modules can be integrated with other devices such as robots, sensors, and vision systems to build more complex and intelligent automated production lines.

What kind of control system do linear motors require?

Linear motors typically require a high-performance motion control system that can achieve precise position control, speed control, and thrust control, such as a dedicated linear motor drive with a motion control card or a high-end PLC.
