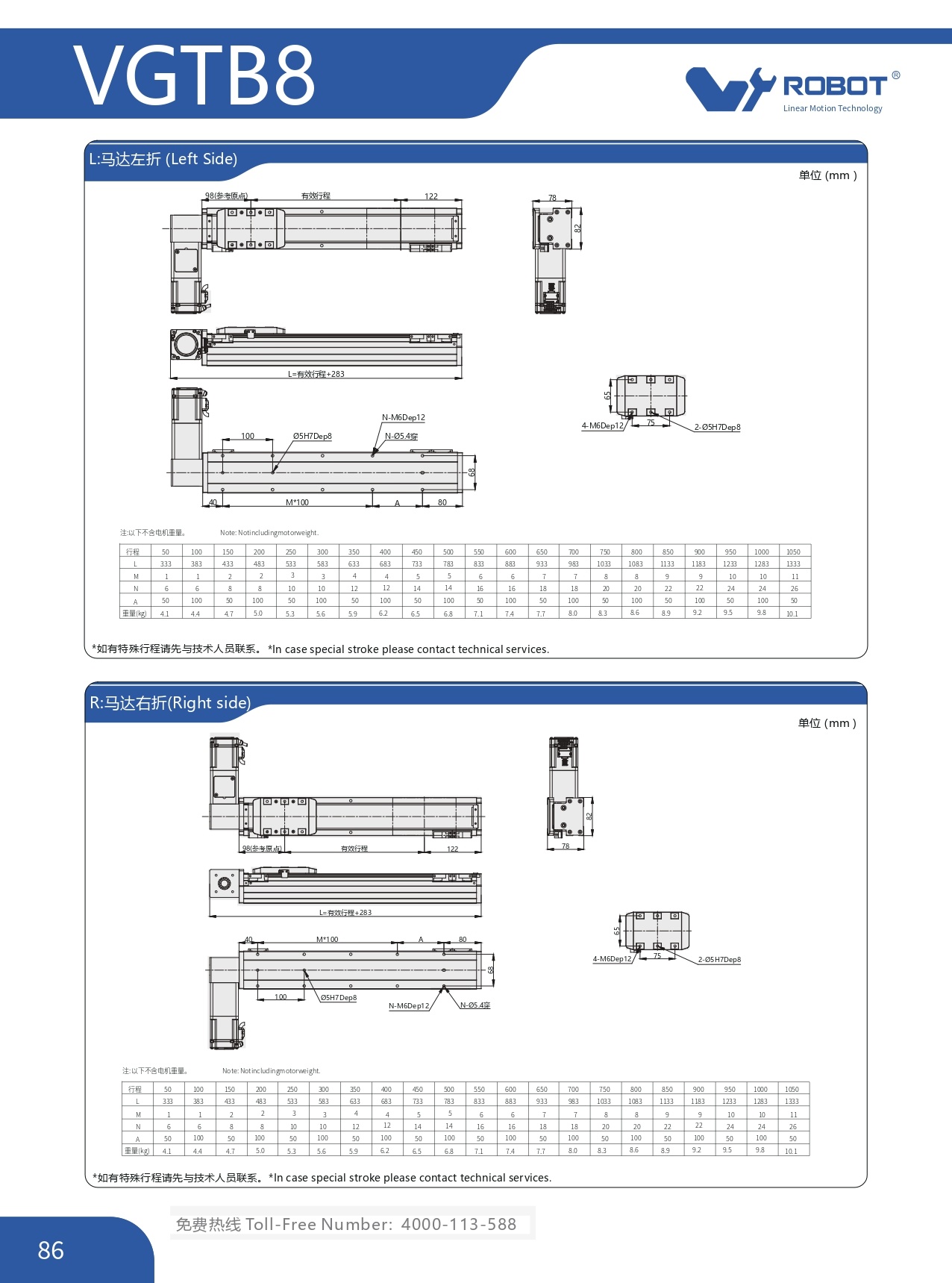

Timing belt - Module-VGTB8

Motor power: 400W (AC) Drive method: Synchronous belt drive Repeatability: ±0.04mm Lead: 66mm Maximum speed: 2000mm/sec (corresponding to motor speed 3000rpm/min)

Category:

VGTB Series (Built-in Linear Guide,TOYO Standards)

E-mail

Telephone

Product Details
Application Cases
Related downloads

Ⅰ. Product Overview
The VGTB8 Timing Belt Module by WILLOBO is a high-speed, long-stroke linear motion platform designed for fast transfer, precise positioning, and continuous operation in industrial automation systems.
It utilizes a timing belt drive mechanism combined with precision linear guides, offering low friction, smooth motion, and excellent repeatability.
With its compact design and high dynamic response, the VGTB8 is ideal for high-throughput assembly, inspection, and material handling equipment.
Ⅱ. Technical Features
High-speed belt drive design for efficient long-distance motion
Excellent repeatability with low vibration operation
Compact and lightweight aluminum structure for easy integration
Optional servo motor compatibility for precise position control
Quiet operation with minimal maintenance requirements
Supports multi-axis linkage and synchronized motion control
Flexible installation direction: horizontal, vertical, or inverted
Ⅲ. Product Advantages
Fast and smooth motion with high repeatability
Long effective stroke while maintaining structural rigidity
Lightweight design reduces system load and inertia
Low maintenance cost and extended service life
Supports modular assembly, suitable for multi-axis automation
Cost-effective alternative to ball screw modules for long travel distances
Ⅳ. Application Fields
The VGTB8 Timing Belt Module is widely used in:
High-speed pick-and-place systems
Assembly and inspection automation lines
Laser marking and printing platforms
Material transfer and packaging machinery
Robotics and palletizing systems
Electronics and lithium battery production equipment
The VGTB8 delivers reliable, high-speed linear motion performance across diverse automation scenarios.
Ⅴ. Model Selection & Customization
WILLOBO provides a variety of customization options for the VGTB8 series:
Adjustable stroke length and payload capacity
Compatible with different motor brands and drive configurations
Optional cover protection for semi-sealed applications
Customizable mounting holes and installation orientation
Multi-axis configuration available (X/Y/Z combinations)
2D/3D CAD files and performance data provided for design integration
Ⅵ. Installation & Maintenance
Ensure a stable and level mounting surface before installation
Adjust belt tension periodically to maintain optimal precision
Avoid side loads or external impact on the moving platform
Keep the timing belt and guideways free from dust or debris
Lubricate the linear guides according to the maintenance schedule
Perform periodic inspection every 6 months for optimal performance
Ⅶ. Related Products
VETB22 Semi-Sealed Belt Module
VGTH15 Ball Screw Module
VL14 Linear Motor Module
VGTY12 Electric Cylinder Module
QF10 Ball Screw Linear Actuator
Ⅷ. More Information
For detailed technical specifications, stroke selection charts, and CAD drawings of the VGTB8 Timing Belt Module, please visit www.w-robot.com or contact the WILLOBO technical support team.
The VGTB8 combines speed, precision, and reliability, making it a perfect solution for next-generation automated motion systems.
