Timing Belt Modules VBF14

Motor power ；400W Drive mode ；Timing belt driving Repeat positioning accuracy ；±0.05mm lead ；45mm fastest speed ；2000mm/s

Category:

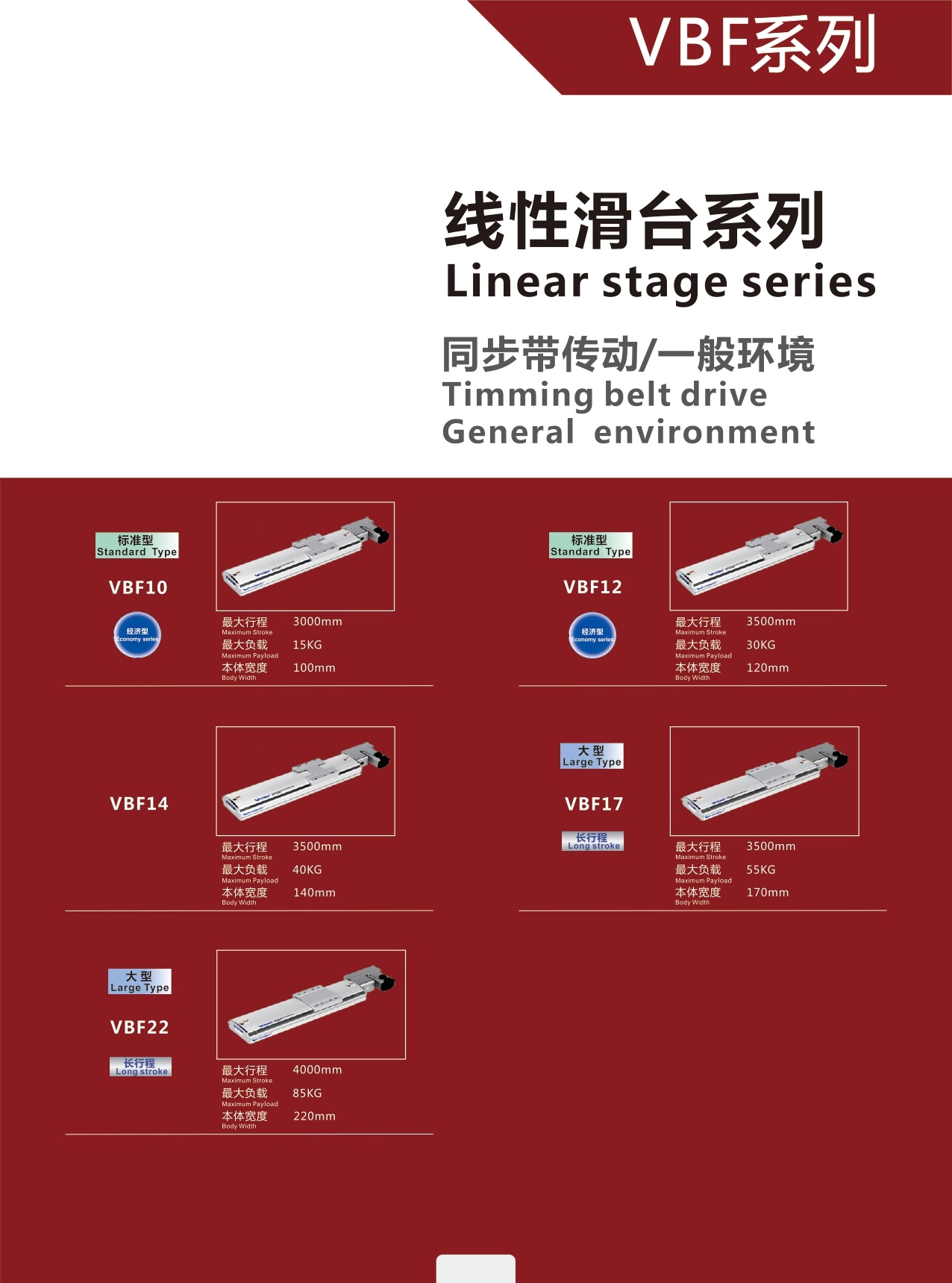

VBF Series (Timming Belt Linear Stage, General Environment)

E-mail

Telephone

Product Details
Application Cases
Related downloads

Timing Belt Modules – VBF14
High-Speed · Stable · Cost-Effective Linear Motion Platform
Ⅰ. Product Overview
The W-ROBOT VBF14 Timing Belt Module is a high-speed linear motion solution designed for modern automation systems that demand both performance and flexibility.
By adopting a belt-driven transmission system combined with precision linear guides, the VBF14 achieves smooth motion, long travel range, and low maintenance cost, making it ideal for large-scale and high-speed applications.
Unlike screw-type actuators, the VBF14 provides zero backlash transmission and high efficiency over long strokes.
Its compact and modular structure allows for easy integration into automated assembly lines, testing systems, and pick-and-place equipment.
Ⅱ. Technical Features
High-Speed Performance – Supports motion speeds up to 3,000 mm/s, ideal for fast transfer and positioning tasks.
Precision Belt Drive System – Ensures low vibration and excellent repeatability within ±0.03 mm.
Compact & Lightweight Design – Reduces machine footprint while maintaining rigidity and durability.
Quiet and Clean Operation – Belt drive minimizes friction and requires no lubrication.
Flexible Integration – Compatible with various servo and stepper motors for easy control.
Customizable Options – Travel length, pulley ratio, and mounting style can be tailored to meet specific industrial needs.
Ⅲ. Application Fields
The VBF14 Timing Belt Module is widely used in various automation and precision systems, including:
Electronics and Semiconductor Equipment
Laser Processing and Engraving Machines
Automated Inspection and Vision Systems
Packaging and Labeling Machinery
Material Transfer and Handling Robots
Medical and Laboratory Automation Platforms
Its stable, low-maintenance performance makes it an essential motion component for smart manufacturing environments.
Ⅳ. Model Selection & Customization
W-ROBOT provides a variety of VBF series customization options to match diverse industrial applications:
Customizable travel range, speed, and payload
Optional limit sensors and feedback encoders
Supports horizontal, vertical, or multi-axis combination (XY / XYZ) installations
Compatible with multiple servo brands and motor sizes
3D CAD models and full technical documentation available for integration design
Ⅴ. Product Advantages
Zero backlash, long lifespan
Smooth and consistent motion even under high acceleration
Low operating noise and maintenance-free design
Cost-effective solution for long-stroke automation
Flexible installation and integration
Strong structure ensures high rigidity and reliability
The VBF14 module helps automation equipment achieve faster throughput, higher precision, and improved efficiency in industrial production.
Ⅵ. Installation & Maintenance
Ensure a flat, rigid mounting surface.
Maintain belt tension and check alignment regularly.
Keep guides and pulleys free from dust and contaminants.
Perform accuracy inspection every 6–12 months.
Avoid strong vibration or high humidity environments.
Tighten all fasteners to the recommended torque values.
Ⅶ. Learn More
Explore more from W-ROBOT:
“W-ROBOT: Driving Precision in Motion Control”
“Optimizing Automation with Belt-Driven Linear Modules”
Visit our official website for detailed technical data:
https://www.w-robot.com/About.html
Related Products
Timing Belt Modules – VETB22
High-Speed Timing Belt Modules – OB16
Ball Screw Linear Actuator – QF6N
