Timing Belt Modules-VGTB20

Motor power ；750W Drive mode ；Timing belt drive Repeat positioning accuracy ；±0.04/1000 lead ；40mm fastest speed ；2000mm/s (motor speed 3000rpm/min)

Category:

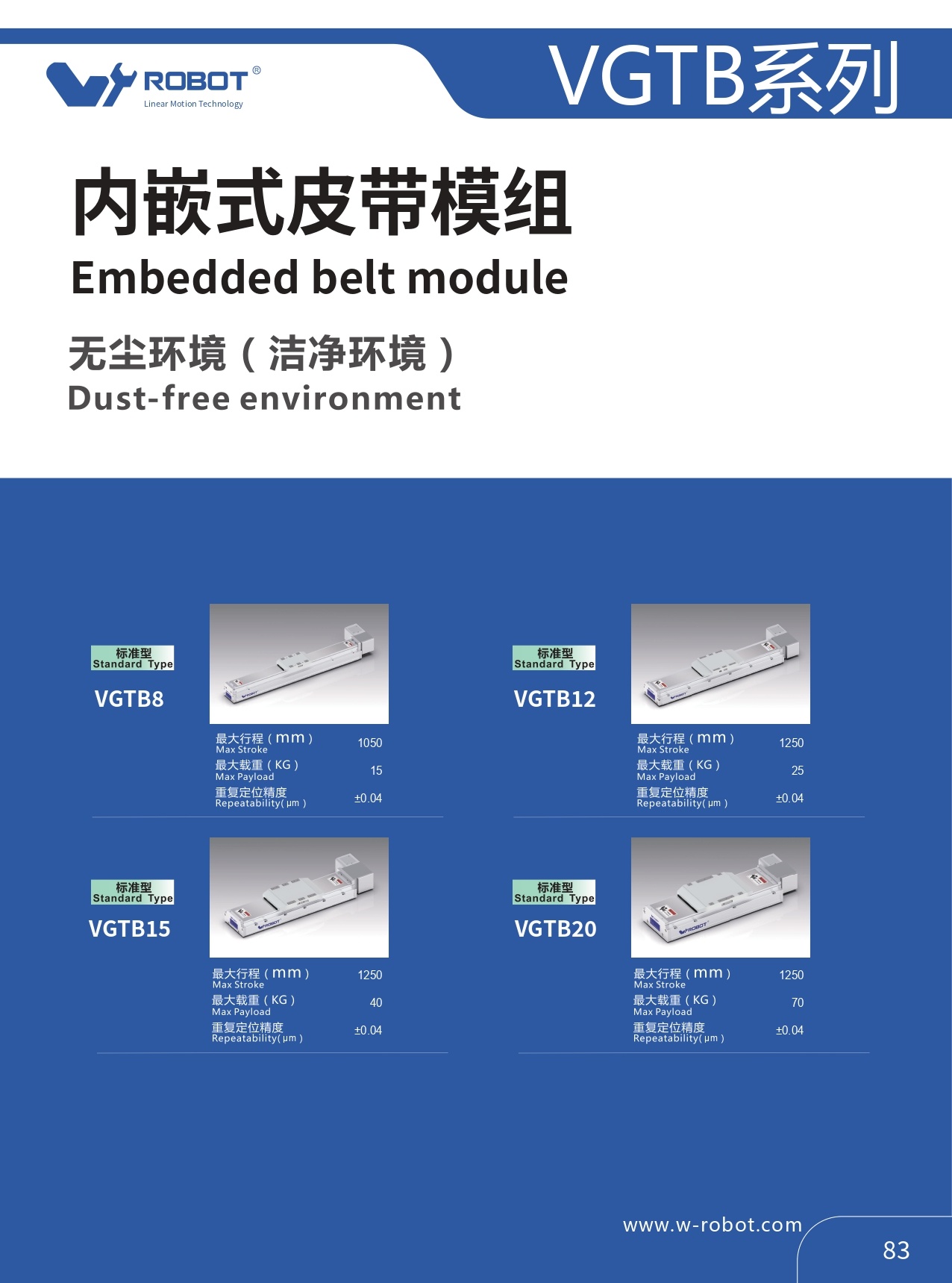

VGTB Series (Built-in Linear Guide,TOYO Standards)

E-mail

Telephone

Product Details
Application Cases
Related downloads

Timing Belt Module – VGTB20
High Precision · Heavy Load Capacity · Reliable and Efficient Motion
Ⅰ. Product Overview
The W-ROBOT VGTB20 Timing Belt Module is a high-performance linear motion system designed for heavy-duty industrial applications that require precise motion, high load capacity, and smooth operation.
This module combines a high-quality timing belt with precision-engineered linear guides, providing accurate positioning, minimal backlash, and long-lasting performance in demanding environments.
The VGTB20 offers a modular design that is easy to integrate into automation systems, including robotic arms, material handling systems, assembly lines, and packaging machines. Its robust design ensures it performs efficiently even in harsh environments, making it suitable for industries requiring precision and reliability.
Ⅱ. Technical Features
High precision timing belt drive system for accurate and smooth motion
High load capacity and rigid construction for heavy-duty applications
Low backlash and minimal maintenance for stable, long-lasting performance
Modular design that allows for flexible integration into complex systems
Smooth and quiet operation, ideal for noise-sensitive environments
Long service life with durable components designed for continuous operation
Adjustable stroke length and speed control options for custom system configurations
Compatible with servo motors, stepper motors, and various motion control systems
Energy-efficient with lower operational costs compared to other drive systems
Ⅲ. Application Fields
The VGTB20 Timing Belt Module is ideal for use in:
CNC machine tools and high-precision equipment
Robotic arms and industrial automation systems
Automated assembly lines
Material handling and transportation systems
Packaging systems
Inspection and testing equipment
With its high precision, load capacity, and smooth operation, the VGTB20 excels in industries requiring high-performance motion systems for heavy-duty applications.
Ⅳ. Model Selection & Customization
W-ROBOT offers comprehensive customization options for the VGTB series to meet the specific needs of your automation system:
Customizable stroke lengths and belt options (e.g., tooth profiles, belt tension)
Flexible motor and controller compatibility, including servo motors and stepper motors
Modular components that allow easy integration into complex multi-axis systems
2D/3D CAD models and technical datasheets available to assist with system design
Belt material selection based on speed and load requirements
Ⅴ. Product Advantages
High load capacity and rigidity for demanding industrial environments
Precise motion control with low backlash
Energy-efficient operation, reducing operating costs
Modular design for flexibility and easy system integration
Quiet operation with smooth performance
Durable components that require minimal maintenance
The VGTB20 Timing Belt Module offers reliable, precise, and efficient linear motion, making it the ideal solution for heavy-duty applications in automation and robotics.
Ⅵ. Installation & Maintenance
Ensure a stable, rigid mounting surface for precise motion
Regularly inspect the timing belt and guide rails for wear or misalignment
Keep the system clean and lubricated to prevent friction and wear
Check belt tension periodically to ensure optimal performance
Tighten mounting fasteners to the recommended torque to maintain stability
Avoid exposure to dust, moisture, or extreme temperatures
Perform periodic maintenance checks to ensure the system is functioning at its best
Ⅶ. Learn More
Explore Other Solutions from W-ROBOT:
VGTY15 Electric Cylinder Module – For precise, linear motion with excellent load capacity
VGTH15 Fully Enclosed Ball Screw Module – High-precision motion for demanding automation tasks
VGL15 Linear Motor Module – A reliable solution for high-speed, high-precision applications
VETB22 Semi-Enclosed Belt Module – Ideal for modular systems with cost-effective solutions
Learn More About W-ROBOT:
About W-ROBOT
Service & Support
Recommended Articles:
“Timing Belt Modules: The Key to High-Efficiency Automation Systems”
“W-ROBOT’s Guide to Choosing the Best Linear Motion Solution for Your Application”
