Name: Timing Belt Modules-VGTB15
Brand: W-ROBOT

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

[email protected]

E-mail

+86 13049770422

Telephone

+86 13360462722

Timing Belt Modules-VGTB15

Motor power ；400W Drive mode ；Timing belt drive Repeat positioning accuracy ；±0.04/1000 lead ；40mm fastest speed ；2000mm/s (motor speed 3000rpm/min)

Category:

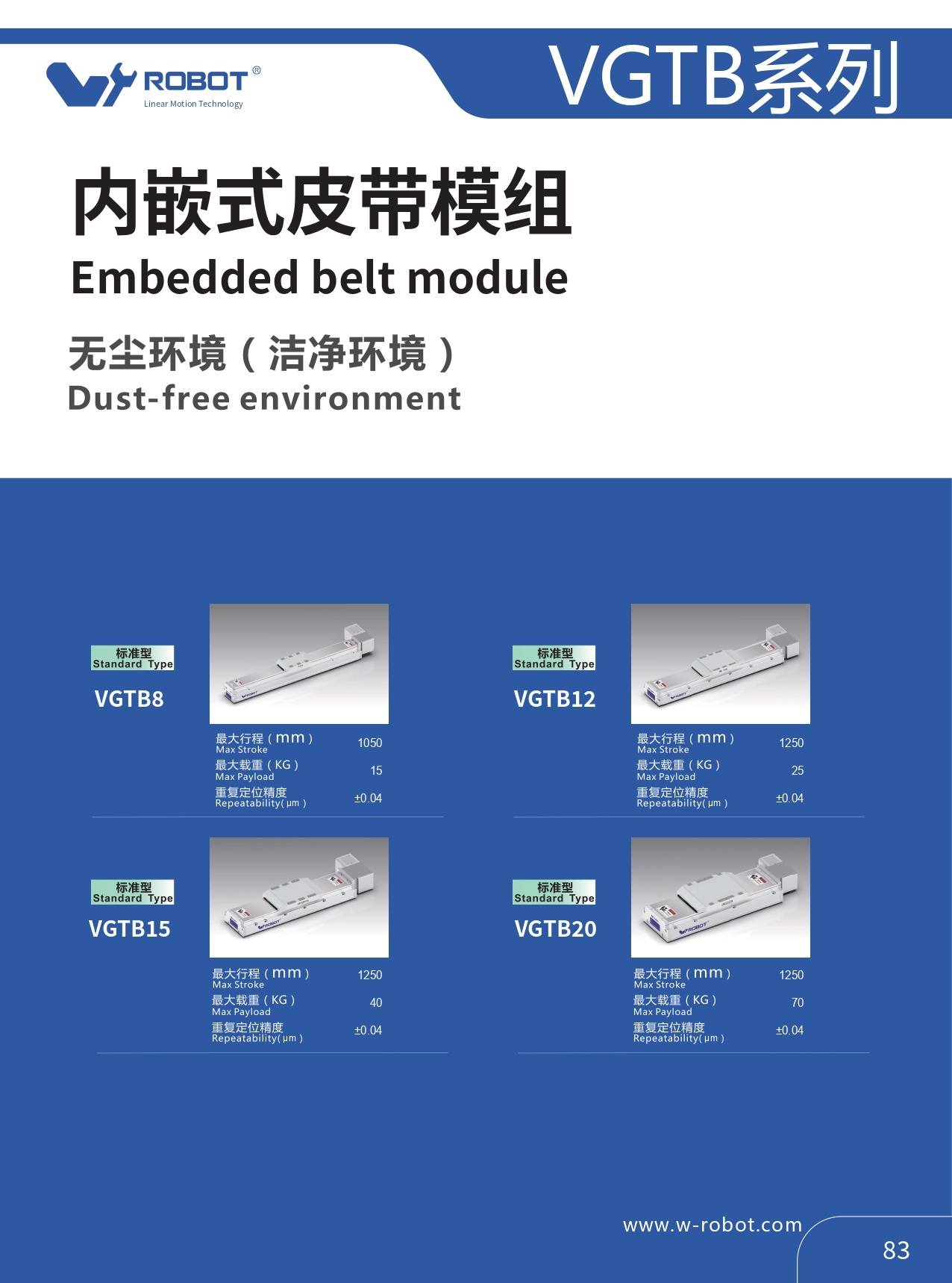

VGTB Series (Built-in Linear Guide,TOYO Standards)

E-mail

Telephone

Product Details
Application Cases
Related downloads

Timing Belt Module – VGTB15
High Precision · High Load Capacity · Smooth and Efficient Motion
Ⅰ. Product Overview
The W-ROBOT VGTB15 Timing Belt Module is an advanced linear motion system that combines high precision, high load capacity, and smooth, reliable operation for a wide range of industrial automation applications.
This module features a high-quality timing belt drive system, paired with precision-engineered linear guides, providing exceptional accuracy, repeatability, and long-lasting performance in demanding environments.
The VGTB15 is ideal for applications requiring efficient power transmission, precise positioning, and consistent motion. Its modular design allows easy integration into various systems for material handling, assembly lines, robotic arms, and packaging systems.
Ⅱ. Technical Features
High precision timing belt drive system for smooth, stable motion
High load capacity and rigidity for heavy-duty industrial applications
Low backlash for improved accuracy and repeatability
Modular design for flexibility in system integration
Smooth, quiet operation, suitable for noise-sensitive environments
Durable components designed for continuous, high-performance operation
Adjustable stroke length and speed control options for flexible configurations
Compatible with servo motors, stepper motors, and various motion control systems
Long service life with minimal maintenance requirements
Ⅲ. Application Fields
The VGTB15 Timing Belt Module is ideal for use in the following industries:
Robotics: Pick-and-place systems, robotic arms, and material handling
Automated assembly lines
Packaging systems
Inspection and testing systems
Medical and laboratory automation
Transportation and material handling
Thanks to its high load capacity, precise motion, and smooth power transmission, the VGTB15 is perfect for applications where high performance, reliability, and long-lasting efficiency are critical.
Ⅳ. Model Selection & Customization
W-ROBOT offers various customization options for the VGTB series to meet the specific needs of your automation systems:
Customizable stroke lengths and belt tensioning options
Various motor options (servo, stepper) and motion controllers for flexible configuration
Modular components for easy integration into multi-axis systems
Available with different tooth profiles and belt materials for various load and speed requirements
2D/3D CAD models and technical datasheets available to assist in system design
Ⅴ. Product Advantages
High load capacity and rigid structure for demanding industrial applications
Precise motion control with low backlash for improved positioning
Efficient power transmission with smooth, low-maintenance operation
Quiet and smooth operation, ideal for environments requiring noise control
Modular, customizable design for easy integration into complex systems
Long service life with minimal wear and maintenance costs
Energy-efficient with lower operational costs compared to other drive systems
The VGTB15 Timing Belt Module ensures high-precision, reliable, and smooth linear motion, making it the ideal solution for a wide range of industrial automation, robotics, and material handling applications.
Ⅵ. Installation & Maintenance
Ensure a stable, rigid mounting surface for accurate motion
Regularly inspect the timing belt and guide rails for signs of wear or misalignment
Keep the system clean and lubricated to avoid friction-related issues
Adjust the belt tension periodically for optimal performance
Tighten all mounting fasteners to the recommended torque to ensure stability
Avoid exposing the system to dust, moisture, or extreme temperatures
Perform periodic maintenance checks to ensure the system operates efficiently
Ⅶ. Learn More
Learn More About W-ROBOT:
About W-ROBOT
Service & Support
Explore Related Products:
VGL15 Linear Motor Module
VGTH15 Fully Enclosed Ball Screw Module
VGTY15 Electric Cylinder Module
VETB22 Semi-Enclosed Belt Module
Recommended Articles:
“Optimizing Automation with Timing Belt Modules for High-Performance Motion”
“The Benefits of Timing Belts in Linear Motion Systems: Reliability and Efficiency”

Factory Workshop

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

FAQ

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

What are the future development trends of linear modules and linear motors?

In the future, linear modules and linear motors will develop towards higher precision, higher speed, smaller size, intelligence, and integration with other advanced technologies (such as artificial intelligence and the Internet of Things).

What parameters need to be provided for customized linear motors?

It is necessary to provide detailed parameters such as load weight, stroke, speed, acceleration, accuracy requirements, installation method, and operating environment so that the manufacturer can design and manufacture a linear motor that meets the requirements.

How long is the customization cycle of linear modules?

The customization cycle depends on the complexity of the customization and the manufacturer's production capacity, generally about 1-4 weeks. The specific time can be determined by communicating with the manufacturer.

Can linear motors be upgraded?

The performance of linear motors can be improved by upgrading them with high-performance drives, optimizing control system parameters, and improving heat dissipation structures.

Is it easy to upgrade the linear module?

It is relatively easy to upgrade the motor, control system, guide rail and other components of the linear module according to actual needs to improve its performance and accuracy.

What is the after-sales maintenance service of linear motors?

Regular manufacturers usually provide comprehensive after-sales maintenance services, including fault diagnosis, maintenance guidance, parts replacement, etc., but the response speed and quality of after-sales maintenance services may vary from manufacturer to manufacturer.

What is the warranty period for linear modules?

The warranty period of linear modules from different manufacturers varies, generally around 1-2 years. The specific warranty period can be confirmed with the manufacturer at the time of purchase.

What should we pay attention to when integrating linear motors with other equipment?

Attention should be paid to issues such as interface compatibility, signal matching, control logic coordination, and installation space and layout between devices to ensure that the devices can work together.

Can the linear module be integrated with other equipment?

Absolutely. Linear modules can be integrated with other devices such as robots, sensors, and vision systems to build more complex and intelligent automated production lines.

What kind of control system do linear motors require?

Linear motors typically require a high-performance motion control system that can achieve precise position control, speed control, and thrust control, such as a dedicated linear motor drive with a motion control card or a high-end PLC.
