Ball Screw Module VGTY4

Maximum Stroke ；500mm Maximum Payload ；25Kg Body Width ；44mm

Category:

VGTY Series（Embedded Electric Cylinder Module）

E-mail

Telephone

Product Details
Application Cases
Related downloads

Ball Screw Module – VGTY4
Ⅰ. Product Overview
The VGTY4 Ball Screw Module from WILLOBO is a compact, high-precision linear motion platform designed for automation, inspection, and fine assembly applications.
Using a high-efficiency ball screw transmission, this module achieves smooth, accurate, and stable motion performance, ideal for tasks requiring micro-level positioning and long-term reliability.
Its integrated structure allows for easy installation in compact systems, while maintaining excellent rigidity and load-bearing capability.
Ⅱ. Technical Features
Precision ball screw drive, minimal backlash, high positioning accuracy
Compact and lightweight structure for easy integration
High stiffness frame ensures stable operation under high loads
Low noise and low friction, suitable for cleanroom or laboratory use
Smooth motion with excellent repeatability and responsiveness
Maintenance-free sealed design with long service life
Ⅲ. Product Advantages
High precision and repeatability (up to ±0.01 mm)
Compact size suitable for limited installation spaces
Quiet and stable operation, ideal for precision environments
Modular design, compatible with multi-axis motion systems
Durable structure, ensuring reliable continuous operation
Ⅳ. Application Fields
The VGTY4 Ball Screw Module is widely used in:
Semiconductor processing and electronic assembly
Precision measuring and optical inspection systems
Medical equipment and laboratory automation
Laser engraving and micro-manipulation systems
Miniature robots and positioning stages
Ⅴ. Model Selection & Customization
WILLOBO provides flexible customization options for the VGTY Series:
Adjustable stroke length, speed, and load capacity
Optional motor configurations (servo or stepper compatible)
Multi-interface support for various control systems
Custom mounting and feedback sensor options

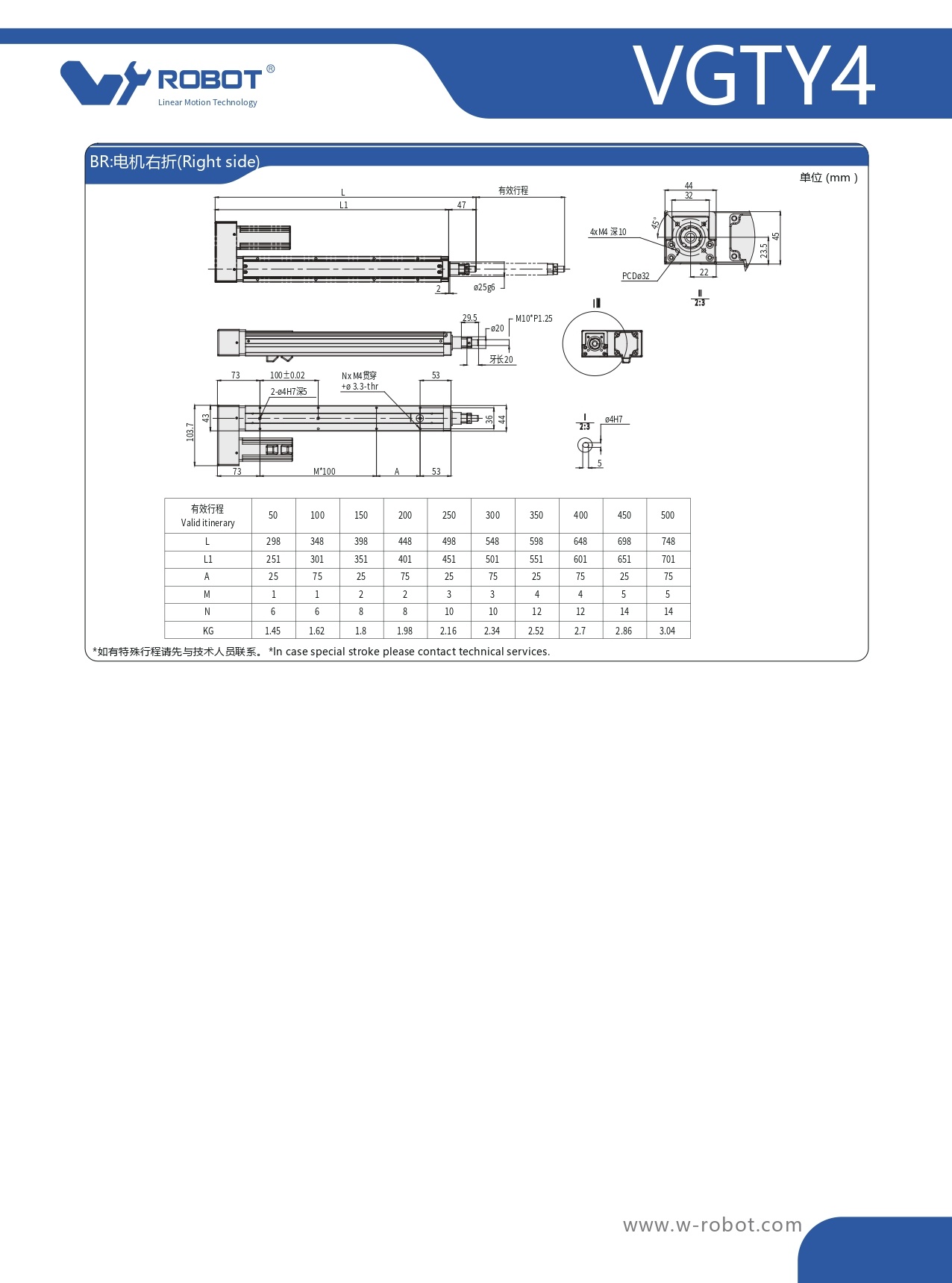

2D/3D CAD drawings and detailed specifications available
Ⅵ. Installation & Maintenance
Ensure installation base is flat, rigid, and vibration-free
Keep ball screw and linear guides clean to maintain accuracy
Check mechanical alignment regularly during long-term operation
Tighten all bolts to the recommended torque values
Avoid running in high-humidity or dusty environments
Inspect precision and motion performance every 6 months
Ⅶ. Related Products
VGL15 Linear Motor Module
VGTH15 Fully-Enclosed Ball Screw Module
VGTY15 Electric Cylinder Module
VETB22 Semi-Sealed Belt Module
QF13 Ball Screw Linear Actuator
Ⅷ. More Information
For detailed specifications, CAD drawings, or customization inquiries, please contact the WILLOBO technical team through www.w-robot.com.
The VGTY4 Ball Screw Module delivers precision, reliability, and flexibility, empowering next-generation intelligent automation solutions.

Factory Workshop

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

FAQ

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

What are the future development trends of linear modules and linear motors?

In the future, linear modules and linear motors will develop towards higher precision, higher speed, smaller size, intelligence, and integration with other advanced technologies (such as artificial intelligence and the Internet of Things).

What parameters need to be provided for customized linear motors?

It is necessary to provide detailed parameters such as load weight, stroke, speed, acceleration, accuracy requirements, installation method, and operating environment so that the manufacturer can design and manufacture a linear motor that meets the requirements.

How long is the customization cycle of linear modules?

The customization cycle depends on the complexity of the customization and the manufacturer's production capacity, generally about 1-4 weeks. The specific time can be determined by communicating with the manufacturer.

Can linear motors be upgraded?

The performance of linear motors can be improved by upgrading them with high-performance drives, optimizing control system parameters, and improving heat dissipation structures.

Is it easy to upgrade the linear module?

It is relatively easy to upgrade the motor, control system, guide rail and other components of the linear module according to actual needs to improve its performance and accuracy.

What is the after-sales maintenance service of linear motors?

Regular manufacturers usually provide comprehensive after-sales maintenance services, including fault diagnosis, maintenance guidance, parts replacement, etc., but the response speed and quality of after-sales maintenance services may vary from manufacturer to manufacturer.

What is the warranty period for linear modules?

The warranty period of linear modules from different manufacturers varies, generally around 1-2 years. The specific warranty period can be confirmed with the manufacturer at the time of purchase.

What should we pay attention to when integrating linear motors with other equipment?

Attention should be paid to issues such as interface compatibility, signal matching, control logic coordination, and installation space and layout between devices to ensure that the devices can work together.

Can the linear module be integrated with other equipment?

Absolutely. Linear modules can be integrated with other devices such as robots, sensors, and vision systems to build more complex and intelligent automated production lines.

What kind of control system do linear motors require?

Linear motors typically require a high-performance motion control system that can achieve precise position control, speed control, and thrust control, such as a dedicated linear motor drive with a motion control card or a high-end PLC.
