Name: Electric gripper-LEF20-S10
Brand: W-ROBOT

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

[email protected]

E-mail

+86 13049770422

Telephone

+86 13360462722

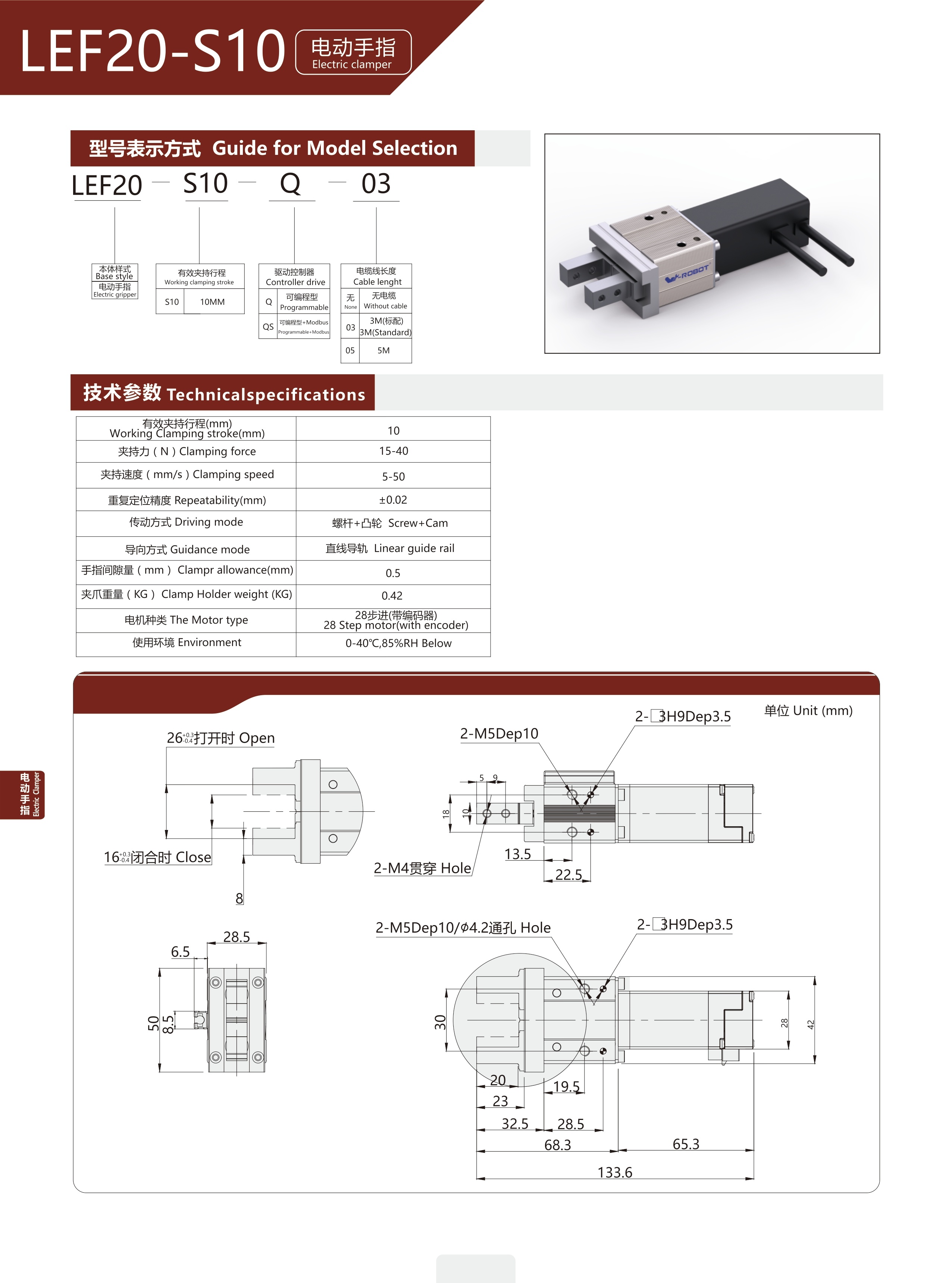

Electric gripper-LEF20-S10

- High tech DDT telescopic cone - Multiple inverted forming slingshot ejector pin - Two color large mold lock - Super wear-resistant secondary ejection - Ultra large precision threaded core

Category:

LEF Series（Electric Gripper）

E-mail

Telephone

Product Details
Application Cases
Related downloads

LEF20-S10 Electric Linear Actuator
Compact · Precise · High-Performance Linear Motion Platform
1. Product Overview
The W-ROBOT LEF20-S10 Electric Linear Actuator is a ball screw-driven linear motion module designed for high-precision applications such as automated assembly, inspection systems, dispensing, and material handling.
With its compact structure, high positioning accuracy, and superior repeatability, the LEF20-S10 ensures reliable and efficient motion control in advanced automation systems.
2. Technical Features
High-precision ball screw drive for accurate, smooth linear motion
Rigid aluminum body ensures high stiffness and lightweight design
High repeatability (±0.01mm) suitable for precision operations
Integrated linear guide design for low-noise and stable motion
Flexible mounting orientations (horizontal, vertical, or inverted)
Compatible with servo and stepper motors from multiple brands
Modular structure enables easy multi-axis integration
3. Application Fields
The LEF20-S10 actuator is widely used in:
Automated assembly and sorting systems
Precision dispensing and visual alignment platforms
Electronics manufacturing and inspection equipment
Medical and laboratory automation systems
Laser marking, welding, and machining applications
Robotic end-of-arm tooling (EOAT) systems
4. Model Selection & Customization
W-ROBOT provides multiple configuration options and customized solutions for the LEF series, including:
Various lead pitches and stroke lengths
Different motor mounting orientations
Optional encoders, sensors, and limit switches
Availability of 2D/3D CAD drawings and specification sheets
Support for single-axis and multi-axis integration
5. Product Advantages
High positioning precision and motion stability
Compact design that saves installation space
Modular and standardized design for easy maintenance
Low noise, long lifespan, and minimal service requirements
Excellent compatibility with most control systems
6. Installation & Maintenance
Ensure the mounting surface is flat and rigid
Avoid external shock, vibration, and overload
Regularly lubricate the ball screw and guide rails
Check for looseness or alignment every 6 months
Keep the moving components clean and free from debris
7. Application Cases
SMT pick-and-place and dispensing platforms
Optical inspection and assembly stations
Precision measurement and displacement systems
Robotic loading and unloading mechanisms
8. Learn More
Explore more W-ROBOT linear motion solutions:
VGTH Fully Enclosed Ball Screw Module
VGL Series Linear Motors
VGTY Electric Cylinder Modules
VETB Semi-Sealed Timing Belt Modules

Factory Workshop

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

FAQ

Listed below are answers to our most commonly asked questions. Don't see your question?Contact our customer service team. We would be glad to assist you.

What are the future development trends of linear modules and linear motors?

In the future, linear modules and linear motors will develop towards higher precision, higher speed, smaller size, intelligence, and integration with other advanced technologies (such as artificial intelligence and the Internet of Things).

What parameters need to be provided for customized linear motors?

It is necessary to provide detailed parameters such as load weight, stroke, speed, acceleration, accuracy requirements, installation method, and operating environment so that the manufacturer can design and manufacture a linear motor that meets the requirements.

How long is the customization cycle of linear modules?

The customization cycle depends on the complexity of the customization and the manufacturer's production capacity, generally about 1-4 weeks. The specific time can be determined by communicating with the manufacturer.

Can linear motors be upgraded?

The performance of linear motors can be improved by upgrading them with high-performance drives, optimizing control system parameters, and improving heat dissipation structures.

Is it easy to upgrade the linear module?

It is relatively easy to upgrade the motor, control system, guide rail and other components of the linear module according to actual needs to improve its performance and accuracy.

What is the after-sales maintenance service of linear motors?

Regular manufacturers usually provide comprehensive after-sales maintenance services, including fault diagnosis, maintenance guidance, parts replacement, etc., but the response speed and quality of after-sales maintenance services may vary from manufacturer to manufacturer.

What is the warranty period for linear modules?

The warranty period of linear modules from different manufacturers varies, generally around 1-2 years. The specific warranty period can be confirmed with the manufacturer at the time of purchase.

What should we pay attention to when integrating linear motors with other equipment?

Attention should be paid to issues such as interface compatibility, signal matching, control logic coordination, and installation space and layout between devices to ensure that the devices can work together.

Can the linear module be integrated with other equipment?

Absolutely. Linear modules can be integrated with other devices such as robots, sensors, and vision systems to build more complex and intelligent automated production lines.

What kind of control system do linear motors require?

Linear motors typically require a high-performance motion control system that can achieve precise position control, speed control, and thrust control, such as a dedicated linear motor drive with a motion control card or a high-end PLC.
