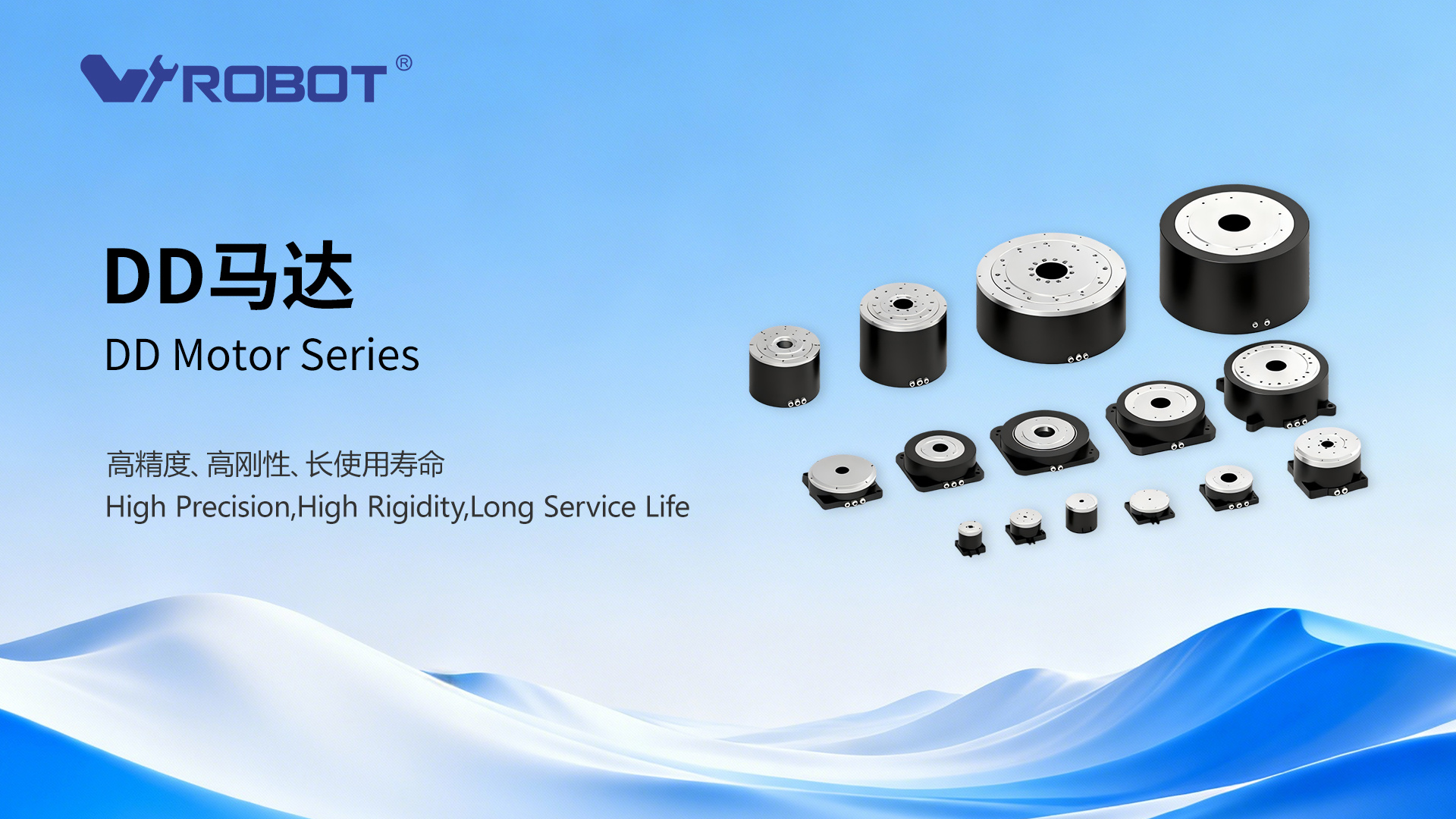

Direct Drive Rotary Motor-DDRE-140-80

Motor Size ；140(D)*80(H)mm Cont Torque ；10.5 N/m Peak Torque ；28N.m Cont/Peak CUR ；2.5/7A-rms

Category:

DDRE Series (External Rotor Motor)

E-mail

Telephone

Product Details
Application Cases
Related downloads

DDRE-140-80 Direct Drive Rotary Motor
High Torque · Large Hollow Shaft · Precision Rotation Without Backlash
Ⅰ. Product Overview
The DDRE-140-80 from W-Robot is a high-torque, large-aperture direct drive rotary motor developed for advanced automation and robotics applications requiring exceptional precision, rigidity, and responsiveness.
With a 140 mm outer diameter and an 80 mm large hollow shaft, this model offers superior torque density while maintaining a compact, integrated structure. The direct-drive mechanism eliminates mechanical transmission elements such as belts or gears, providing zero-backlash motion, high repeatability, and ultra-smooth rotation.
Its open-center hollow design allows for convenient cable routing, vision sensors, or pneumatic lines, making it ideal for robotic joints, rotary platforms, and semiconductor handling systems that demand compact and high-precision rotary actuation.
Ⅱ. Technical Features
Direct Drive System: Ensures zero backlash, high stiffness, and instant torque response.
Large Hollow Shaft (Ø80 mm): Allows internal routing of cables, air pipes, or optical paths.
High Torque Output: Optimized magnetic circuit delivers powerful torque within a compact size.
Smooth & Silent Motion: Low cogging torque and precision bearing design ensure minimal vibration.
Compact Design: 140 mm frame diameter suitable for integration into limited-space systems.
High-Resolution Encoder Support: Enables sub-arcsecond positioning accuracy.
Maintenance-Free Operation: No belts, gears, or lubrication required — ideal for clean environments.
Ⅲ. Application Fields
The DDRE-140-80 is designed for precision rotary motion control in high-end industrial systems, including:
Collaborative robot and manipulator joints
Wafer handling and inspection equipment
Rotary indexing or turntable systems
Optical and laser processing equipment
Medical and life science automation
Precision assembly and testing platforms
Its high dynamic response and compact integration capabilities make it a preferred choice for OEMs developing space-efficient and high-performance automation systems.
Ⅳ. Model Selection & Customization
W-Robot offers flexible customization for the DDRE series to meet diverse application demands:
Encoder options: absolute / incremental / serial type
Shaft configuration and mounting flange customization
Torque and speed tuning for target load dynamics
Cooling options: natural / forced air / liquid cooling
Integrated servo drive for compact embedded control
Multi-axis solutions (rotary + linear motion systems)
Ⅴ. Product Advantages
Zero mechanical backlash, high rigidity, and precision control
Large 80 mm hollow shaft for simplified cable and tube management
High torque density with efficient electromagnetic design
Quiet, smooth operation — ideal for sensitive environments
Compact footprint supports dense machine layouts
Long service life with minimal maintenance requirement
Ⅵ. Installation & Maintenance
Mount on a stable, vibration-free base for accurate alignment.
Tighten all fasteners with specified torque values.
Keep the shaft hole and mounting surface clean and free of particles.
Avoid prolonged exposure to moisture, dust, or magnetic interference.
Periodically inspect encoder calibration and torque output stability.
Ensure proper electrical grounding during integration.
Ⅶ. Learn More
For more information and technical support, visit www.w-robot.com:
Download DDRE Series datasheets and 3D CAD models
Read: “The Role of Direct Drive Motors in Precision Robotics”
Contact W-Robot’s engineering team for application-specific customization and integration advice
