Name: Direct Drive Rotary Motor-DDR-I-120-050
Brand: W-ROBOT

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

[email protected]

E-mail

+86 13049770422

Telephone

+86 13360462722

Direct Drive Rotary Motor-DDR-I-120-050

Continuous torque ；N.m ；3.5 Continuous current ；A rms ；1.2 Maximum torque Maximum torque ；N.m ；10.5 Maximum current ；A rms ；3.5 Torque constant Torque constant ；Nm/A rms ；3.0 Resistance ；Ohm (25°C) ；27.6 Inductance ；mH (25°C) ；18.7

Category:

DDRI Series (Internal Rotor Motor)

E-mail

Telephone

Product Details
Application Cases
Related downloads

DDRI-120-050 Direct Drive Rotary Motor
High Torque · High Precision · Zero Backlash Performance
Ⅰ. Product Overview
The DDRI-120-050 from W-Robot is a high-torque Direct Drive Rotary Motor designed for precision rotary motion in demanding automation and robotic applications. With a 120 mm frame diameter and 50 mm body height, it delivers an excellent balance of torque density, accuracy, and thermal stability, making it ideal for high-load, high-precision operations such as robotic joints, index tables, and inspection equipment.
By directly coupling the rotor to the load, the DDRI-120-050 eliminates traditional mechanical transmission elements like gears or belts, ensuring zero backlash, no hysteresis, and high dynamic responsiveness. Its integrated high-resolution encoder provides ultra-accurate feedback for superior control performance, while the compact form factor simplifies mechanical integration.
Ⅱ. Technical Features
Direct Drive Architecture: Eliminates backlash, offering pure torque transfer and smooth motion.
High Torque Output: Continuous torque up to 5.0 Nm, peak torque over 15 Nm, suitable for high-duty cycles.
Compact & Rigid Housing: 120 mm frame diameter with robust aluminum body for excellent stiffness and heat dissipation.
High-Resolution Encoder: Built-in precision encoder ensures exceptional position repeatability and control accuracy.
Low Vibration & Noise: Ideal for precision machinery, metrology, and optical inspection.
Maintenance-Free Design: No mechanical wear components — ensuring long life and stable performance.
Flexible Integration: Compatible with both vertical and horizontal mounting; multiple shaft options available.
Ⅲ. Application Fields
The DDRI-120-050 Direct Drive Rotary Motor is suitable for a wide range of precision automation systems, including:
Semiconductor wafer alignment and handling platforms
High-precision rotary stages for optical and vision systems
Robotic wrist joints and collaborative robot bases
Index tables and tool changers for CNC and machining centers
Laser marking and dispensing equipment
High-speed assembly and measurement machinery
Its zero-backlash, direct torque transmission, and high dynamic stiffness make it a preferred solution in industrial and scientific automation requiring exact positioning control.
Ⅳ. Model Selection & Customization
W-Robot provides flexible customization to meet specific integration needs:
Torque and inertia tuning for your dynamic load requirements
Encoder resolution and signal output (incremental or absolute type)
Shaft configuration: hollow or solid type for wiring/pneumatics routing
Cooling method: natural or air-cooled options
Optional integrated servo drive and EtherCAT communication interface
Mounting flange and connector position customization
Comprehensive CAD models (2D/3D) and performance data sheets are available upon request.
Ⅴ. Product Advantages
Zero mechanical backlash and exceptional torque stability
Compact form factor with excellent torque-to-weight ratio
High dynamic response for fast acceleration and deceleration
Integrated encoder for direct and precise position feedback
Long lifespan with no lubrication or mechanical wear
Quiet and smooth operation suitable for cleanroom or lab environments
Ⅵ. Installation & Maintenance
To ensure stable operation and long service life:
Mount the motor on a flat and rigid base to maintain alignment accuracy.
Follow specified tightening torque values for bolts and couplings.
Avoid excessive axial or radial loads on the output shaft.
Route cables carefully to prevent stress or bending at connector points.
Keep the installation environment clean, dry, and temperature-controlled.
Periodically check encoder connection integrity and calibration (every 12–18 months).
With its direct-drive design, the DDRI-120-050 requires virtually no maintenance, offering continuous reliability in high-precision motion systems.
Ⅶ. Learn More
Discover more from W-Robot:
Visit www.w-robot.com for product specifications and CAD downloads
Read our article: “Direct Drive Rotary Motors — The Future of Precision Motion Control”
Contact W-Robot’s technical team for expert guidance on selection and integration
Related Products
Ball Screw Module – VGTH5
Linear Motor Module – VL17
Ball Screw Linear Actuator – QF6N
Electric Gripper – EPGC Series

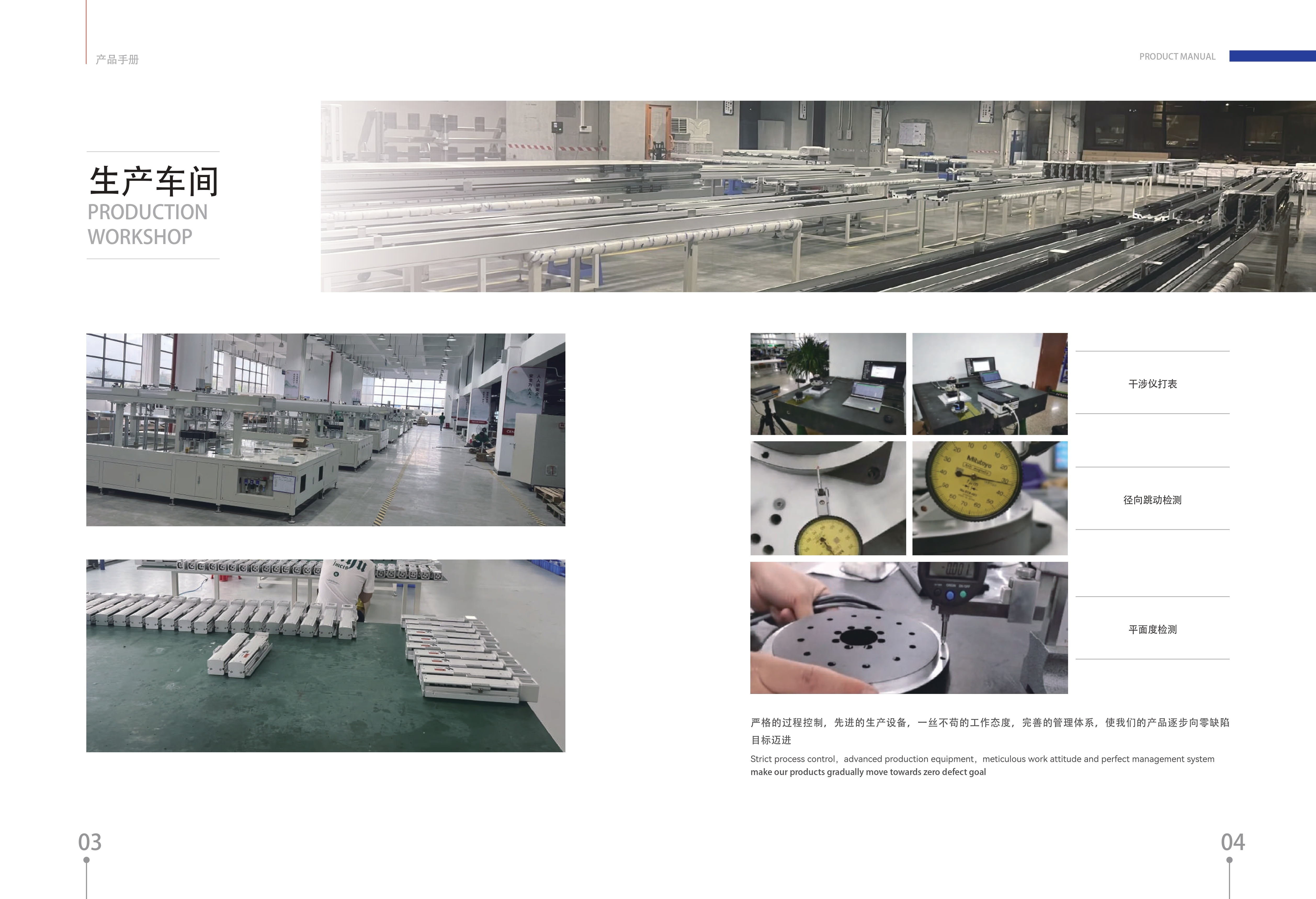

Factory Workshop
