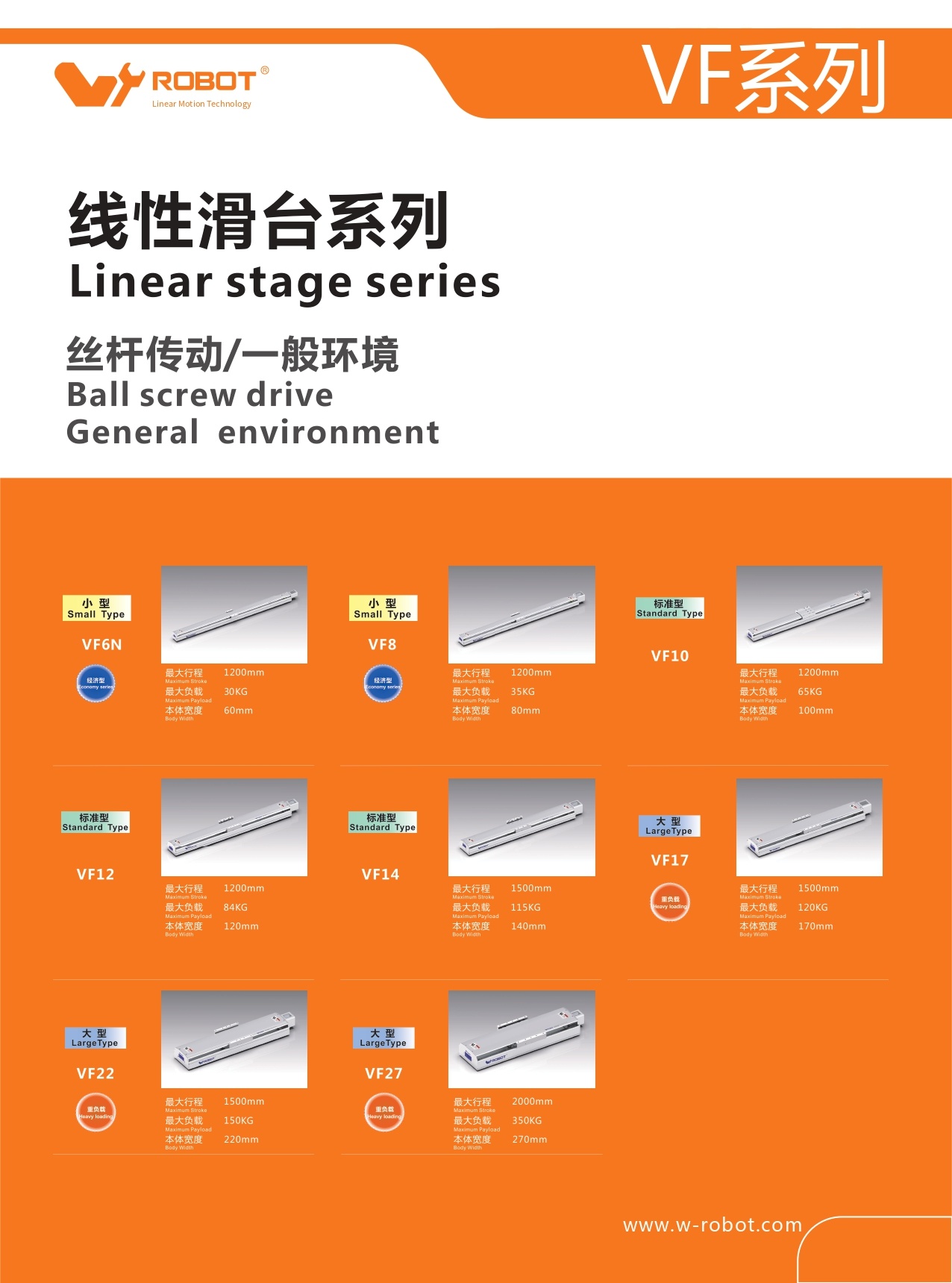

Name: Ball Screw Module VF10
Brand: W-ROBOT

If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!

[email protected]

E-mail

+86 13049770422

Telephone

+86 13360462722

Ball Screw Module VF10

Adapted motor power ；100W/200W/400W Repeat positioning accuracy ；Grade C (C7): ±0.01mm, Grade P (C5): ±0.006mm Lead options ；5mm、10mm、16mm、20mm Standard travel range ；50-1200mm (50mm interval) Linear guide ；15x12-5 Coupling ；100W: 8x10mm, 200W: 10x11mm, 400W: 10x14mm

Category:

VF Series（Anti Torsion、 Complete Specifications）

E-mail

Telephone

Product Details
Application Cases
Related downloads

Ball Screw Module VF10
Compact · Precise · Reliable Linear Motion Platform
1. Product Overview
The W-ROBOT VF10 Ball Screw Module is a high-precision and compact linear motion unit developed for applications requiring smooth transmission, stable positioning, and high repeatability.
With an advanced ball screw and linear guide system, VF10 provides precise linear movement while minimizing friction and backlash, ensuring consistent accuracy in every stroke.
Designed for light- to medium-load automation, it combines compact dimensions with high mechanical rigidity, making it ideal for use in precision assembly, measurement, and pick-and-place equipment.
2. Technical Features
High-precision ball screw drive for accurate, smooth linear motion
Compact structure suited for space-limited installations
Low backlash and minimal vibration ensure repeatable performance
High rigidity frame for improved stability during acceleration and deceleration
Compatible with servo and stepper motor drive systems
Quiet operation with minimal maintenance requirements
Available in multiple lead, stroke, and thrust configurations
Optional semi-enclosed dustproof design
3. Application Fields
The VF10 Ball Screw Module is widely used in high-precision automation systems, including:
Precision pick-and-place mechanisms
Semiconductor assembly and inspection platforms
Optical alignment and measuring equipment
PCB soldering, dispensing, and gluing machines
Laboratory automation and sample handling systems
Small CNC motion platforms and linear stages
Its outstanding positioning performance and smooth motion make VF10 a preferred choice for industrial precision motion control.
4. Model Selection & Customization
W-ROBOT provides comprehensive custom design and configuration options for VF Series modules:
Customizable stroke length, lead, and screw pitch
Options for feedback encoders and position sensors
Compatible with major servo control systems
Multiple mounting interfaces for flexible installation
Supports multi-axis (X/Y/Z) system integration
Complete technical support with 2D/3D CAD drawings and performance data
5. Product Advantages
Compact design with strong load-bearing capacity
High positioning accuracy and excellent repeatability
Low-friction drive with quiet, stable motion
Easy integration into compact equipment structures
Long service life and reduced maintenance cost
Excellent balance between performance and efficiency
The VF10 Ball Screw Module enhances automation systems by combining precision, reliability, and efficiency in a compact, easy-to-integrate design.
6. Installation & Maintenance
Ensure flat, rigid base mounting to maintain positioning accuracy
Keep ball screw and linear guide clean and lubricated periodically
Avoid excessive external force or misalignment during installation
Perform routine inspections every 6 months for wear or deviation
Operate in clean, dry, and temperature-stable environments
Tighten all fasteners to specified torque values to prevent vibration
7. Quality Assurance
All W-ROBOT VF10 modules are manufactured under strict quality standards, including:
Precision calibration and dynamic motion testing
Noise and vibration control evaluation
Long-duration endurance tests for reliability
Full inspection before delivery to ensure stable performance
8. Learn More
Explore More W-ROBOT Motion Solutions:
Ball Screw Module VF8
Ball Screw Module VC12
Linear Motor Module VL17
Electric Cylinder Module VGTY15
Semi-Sealed Belt Module VETB22
